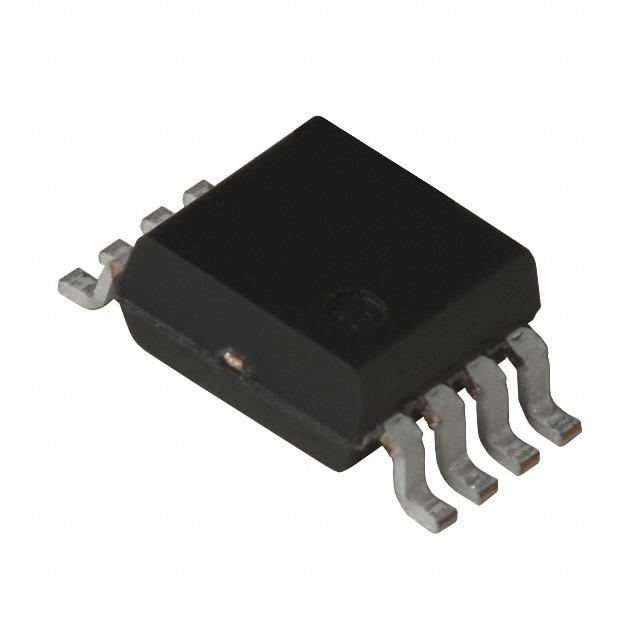

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Misc ICs and Modules
Mfr CEL
Package Tape & Reel
Product Status Obsolete
Function Prescaler
Frequency 500MHz ~ 3GHz
RF Type Broadcast Television, DBS, UHF
Secondary Attributes Divide by 2
Mounting Type Surface Mount
Package / Case 8-SSOP (0.126", 3.20mm Width)
Supplier Device Package 8-SSOP
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 389738-UPB1508GV-E1-A
Ultra Librarian 3D Model Ultra Librarian UPB1508GV-E1-A CAD Model

Description

The 389738-UPB1508GV-E1-A is a RF and Wireless Prescaler IC, designed for applications in broadcast television, DBS, and UHF.

  • It operates in the frequency range of 500MHz to 3GHz, making it suitable for various wireless communication systems.
  • The IC is packaged in an 8-SSOP package, with a tape and reel packaging option available.
  • With its divide by 2 function, it provides a convenient solution for frequency division applications.
  • The 389738-UPB1508GV-E1-A is surface mountable, making it easy to integrate into electronic circuit boards.
  • It is an obsolete product, but it still offers reliable performance for legacy systems.
  • The IC is manufactured by CEL, a trusted name in the industry.
  • It has a moisture sensitivity level of 1, indicating that it is not sensitive to moisture.
  • The 389738-UPB1508GV-E1-A is an ideal choice for RF applications that require frequency division and reliable performance.
