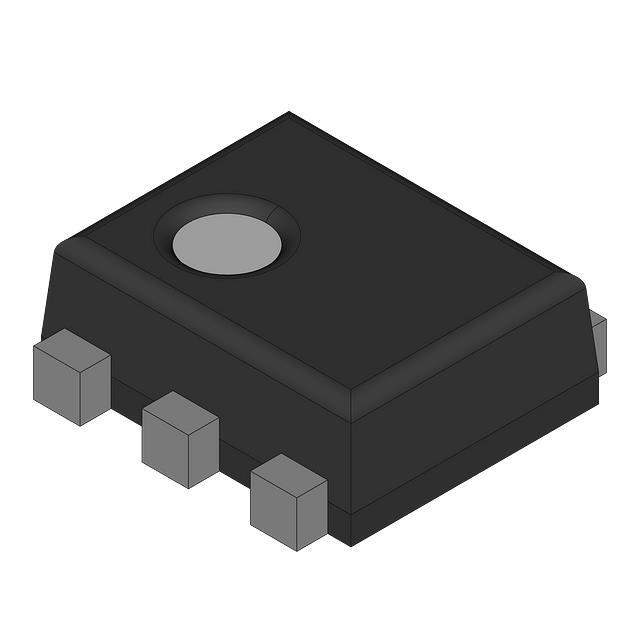

UPA895TS-T3-A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity 2 NPN (Dual)
VCEO Maximum Collector-Emitter Breakdown Voltage 5.5V
Frequency - Transition 6.5GHz
Noise Figure (dB Typ @ f) 1.9dB to 2.5dB @ 2GHz
Maximum Power Dissipation 130mW
Typical Gain (hFE) (Min) 100 @ 5mA, 1V
Maximum Current Collector 100mA
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-Super Lead-Less MiniMold
Win Source Part Number 1116527-UPA895TS-T3-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPA895TS-T3-A CAD Model

Description

The CEL UPA895TS-T3-A transistor is a 2 NPN (Dual) polarity transistor with a maximum current collector of 100mA.

  • Current Collector: 100mA
  • Frequency Transition: 6.5GHz
  • Noise Figure (dB Typ @ f): 1.9dB to 2.5dB @ 2GHz
  • Temperature Range: 150°C
  • Power Dissipation: 130mW
  • Gain (hFE) (Min): 100 @ 5mA, 1V
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 5.5V
