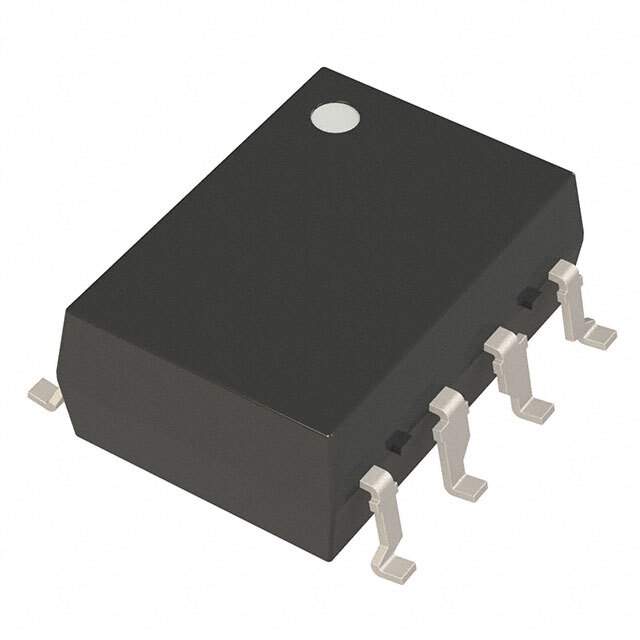

PS9614L-A Real Image
Same model may have multiple batches, images only for reference.

PS9614L-A

Part No PS9614L-A
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPEN COLL 8SMD GW / Optocoupler Logic-Out Open Collector DC-IN 1-CH 8-Pin PDIP SMD
Datasheet
PS9614L-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube
Part Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Minimum) 10kV/μs
Input Type DC
Output Type Open Collector
Output Current per Channel 25mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Maximum) 75ns, 75ns
Rise / Fall Time (Typ) 20ns, 8ns
Voltage - Forward (Vf) (Typ) 1.65V
Current - DC Forward (If) (Maximum) 30mA
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 8-SMD, Gull Wing
Manufacturer Package 8-SMD Gull Wing
Win Source Part Number 792581-PS9614L-A
Popularity Medium
Supply and Demand Status Limited
Family Name PS9614L
Introduction Date June 27, 2002
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PS9614L-A CAD Model

Description

The PS9614L-A is an optocoupler manufactured by CEL. CEL.

  • Package: 8-SMD, gull wing
  • Mounting Type: SMD
  • Output Type: Open Collector
  • Data Rate: 10Mbps
  • Operating Temperature: -40°C to 85°C
  • Operating Supply Voltage: 4.5V to 5.5V
  • Common Mode Transient Immunity: 10kV/μs
  • Voltage Isolation: 3750Vrms
  • Supply and Demand Status: Limited
