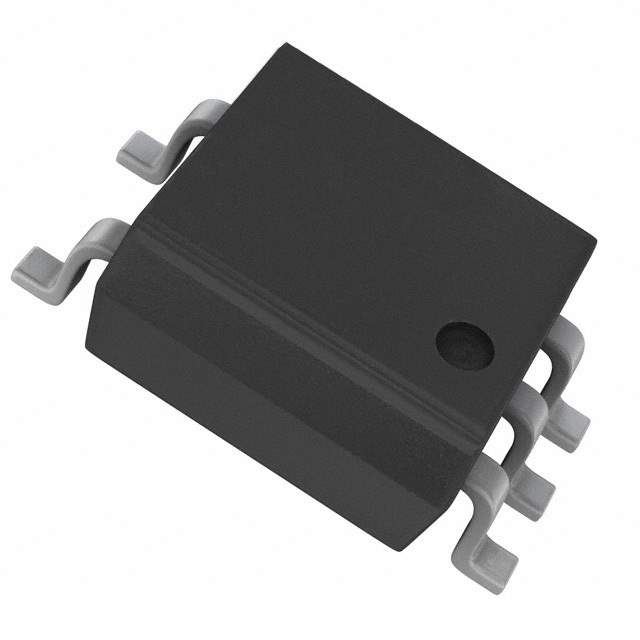

PS9213-F3-A Real Image
Same model may have multiple batches, images only for reference.

PS9213-F3-A

Part No PS9213-F3-A
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 2.5KV OPN COLLECTOR 5SOP
Datasheet
PS9213-F3-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 15kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 15mA
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Max) 750ns, 500ns
Forward Voltage 1.65V
Continuous forward current- Max 25mA
Supply Voltage - Operating 4.5 V to 30 V
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 5-SOP
Win Source Part Number 281513-PS9213-F3-A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS9213-F3-A CAD Model

Description

The CEL 281513-PS9213-F3-A isolator has a data rate of 1Mbps and an input type of DC.

  • Product: CEL 281513-PS9213-F3-A
  • Data Rate: 1Mbps
  • Input Type: DC
  • Forward Voltage: 1.65V
  • Channel Output Current: 15mA
  • Common Mode Transient Immunity (Min): 15kV/μs
  • Propagation Delay tpLH / tpHL (Max): 750ns, 500ns
  • Number of Channels: 1
  • Inputs on Side 1/Side 2: 1/0
  • Mounting Technology: SMD (SMT)
  • Package: 5-SOP
  • Output Type: Open Collector
  • Isolation Voltage: 2500Vrms
  • Status: obsolete (EOL)
  • Popularity: medium
  • Operating Temperature Range: -40°C to 100°C
  • Supply Voltage Range: 4.5V to 30V
