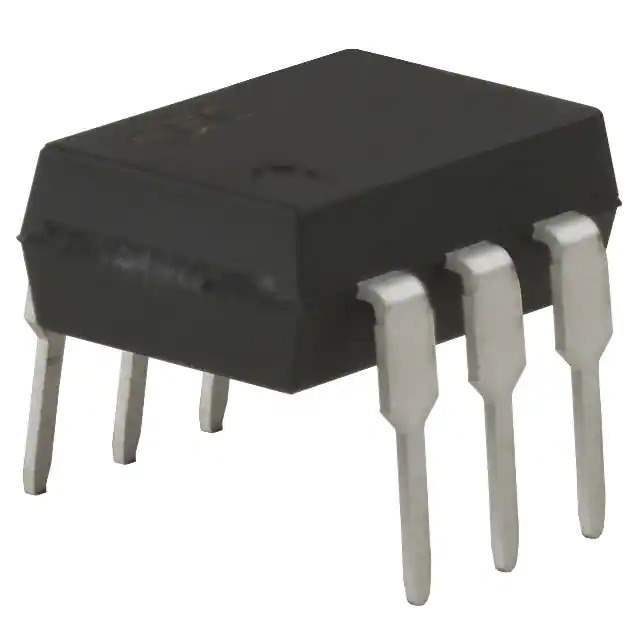

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr CEL
Series PS, OCMOS
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 1.8 A
On-State Resistance (Max) 200 mOhms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 890224-PS710A-1A-A
Ultra Librarian 3D Model Ultra Librarian PS710A-1A-A CAD Model

Description

The PS710A-1A-A is a solid-state relay IC that provides reliable switching for AC and DC loads.

  • Circuit configuration: single-pole, single-throw normally open (SPST-NO) circuit configuration, making it suitable for various applications
  • Maximum on-state resistance: 200 mOhms, allowing for efficient power transfer
  • Load current: 1.8 A
  • Voltage load: 0 V to 60 V
  • Input voltage: 1.2VDC
  • Mounting: through-hole mountable
  • Package: 6-DIP package, which is easy to install
  • Moisture sensitivity level: 1, the PS710A-1A-A can withstand unlimited exposure to moisture
  • Status: an obsolete product, it remains a reliable choice for solid-state relay applications
