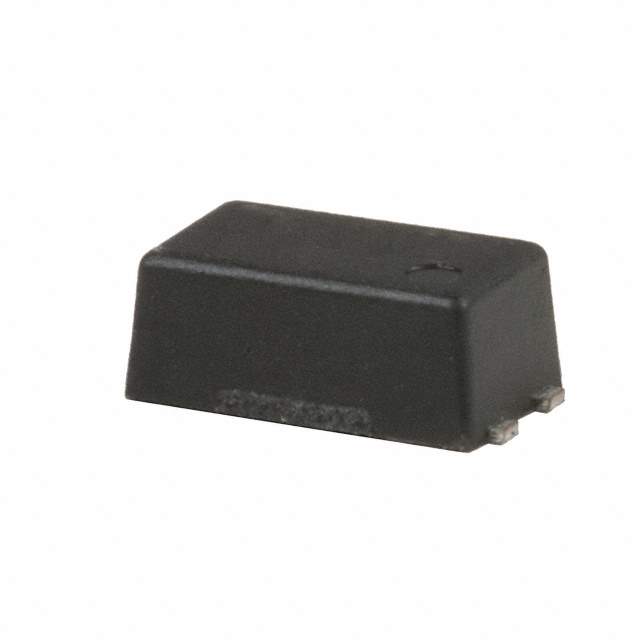

PS2932-1-F3 Real Image
Same model may have multiple batches, images only for reference.

PS2932-1-F3

Part No PS2932-1-F3
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 2.5KV DARL 4SMD
Datasheet
PS2932-1-F3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 400% @ 1mA
Maximum DC Current Transfer Ratio 4500% @ 1mA
Rise and Fall Time 20μs, 5μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 300V
Channel Output Current 60mA
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1V
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 135665-PS2932-1-F3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS2932-1-F3 CAD Model

Description

The CEL PS2932-1-F3 is a Darlington output type optocoupler that is designed to operate with a DC input.

  • Minimum DC current transfer ratio: 400% @ 1mA
  • Maximum DC current transfer ratio: 4500% @ 1mA
  • Isolation voltage: 2500Vrms
  • Operating temperature range: -55°C to 100°C
  • Maximum output voltage: 300V
  • Channel output current: 60mA
  • Packaging: 4-Mini-Flat case
  • Mounting: SMD (SMT) technology
