The PS2815-1-A is a high isolation voltage transistor output type optocoupler.

• Product Name: PS2815-1-A
• Type: High isolation voltage transistor output type optocoupler
• Suitable for: Various digital logic interfaces such as programmable controllers, I/O interfaces, and high-speed data transmission systems.
• Input Signals: AC or DC
• Forward Voltage: 1.15V
• Minimum DC Current Transfer Ratio: 100% @ 1mA
• Maximum DC Current Transfer Ratio: 400% @ 1mA
• Switching Turn-On and Turn-Off Time: Not specified
• Rise Time: 4μs
• Fall Time: 5μs
• Isolation Voltage: 2500Vrms
• Maximum Output Voltage: 40V
• Channel Output Current: 40mA
• Continuous Forward Current: 50mA

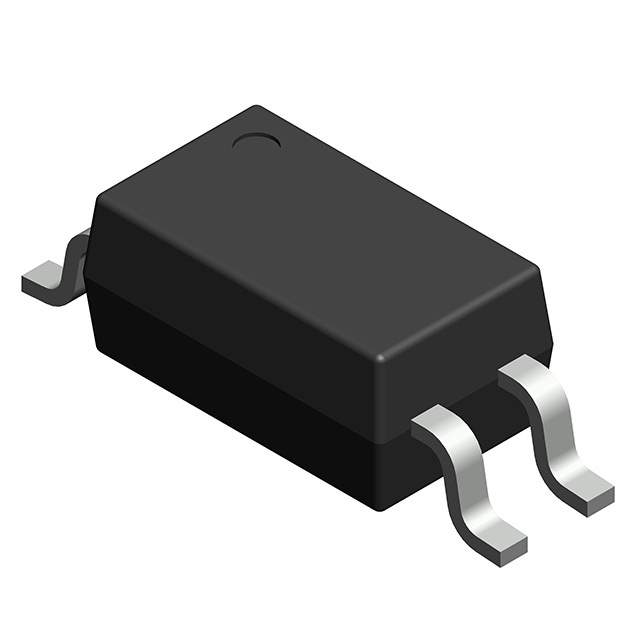

• Package: 4-SSOP
• Temperature Range: -55°C to 100°C
