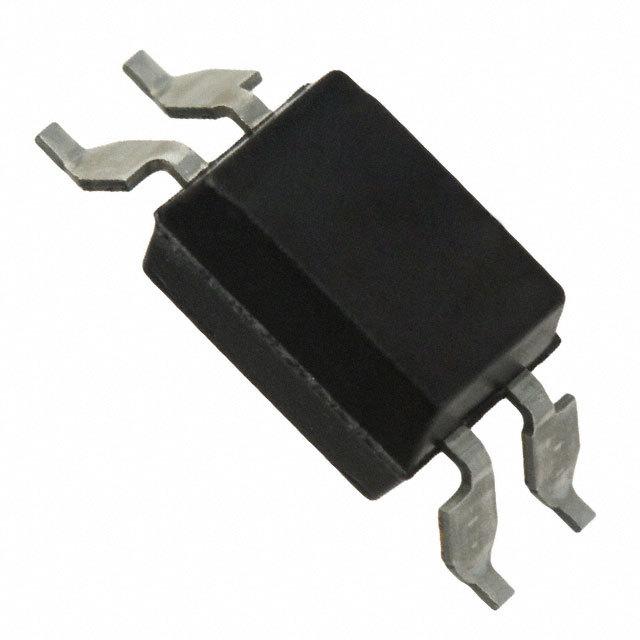

PS2561AL2-1-E3-A CEL
Same model may have multiple batches, images only for reference.

PS2561AL2-1-E3-A

Part No PS2561AL2-1-E3-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4SMD
Datasheet
PS2561AL2-1-E3-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Cut Reel
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 3μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 30mA
Forward Voltage 1.2V
Continuous forward current- Max 30mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 026875-PS2561AL2-1-E3-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2561AL2-1-E3-A CAD Model

Description

CEL PS2561AL2-1-E3-A is an SMD (SMT) mounted isolator with a cut reel packaging.

  • Forward Voltage: 1.2V
  • Isolation Voltage: 5000Vrms
  • Output Type: Transistor
  • Vce Saturation: 300mV (max)
  • Channel Output Current: 30mA
  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 400% @ 5mA
  • Rise Time: 3μs
  • Fall Time: 5μs
  • Temperature Range: -55°C to 100°C
  • Application: Isolators
