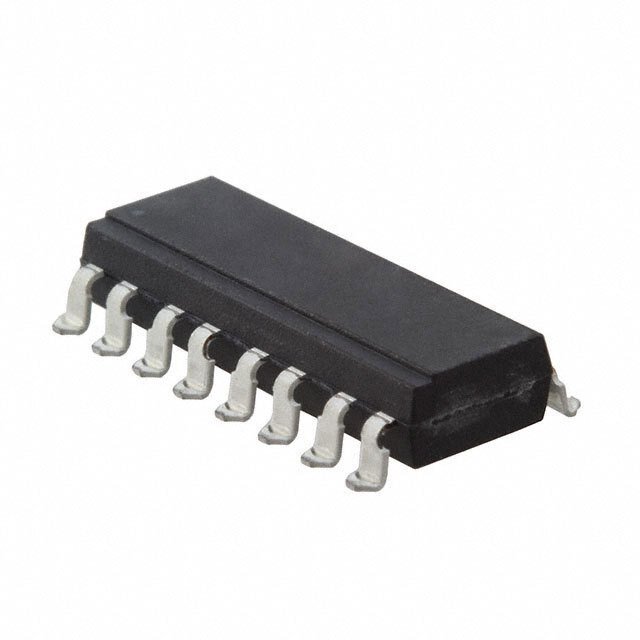

Part No PS2503L-4-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV 4CH TRANS 16-SMD / Optocoupler DC-IN 4-CH Transistor DC-OUT 16-Pin PDIP SMD
Datasheet
PS2503L-4-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Series NEPOC
Packaging Tube
Part Status Obsolete(EOL)
Number of Channels 4
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 100% @ 1mA
Current Transfer Ratio (Maximum) 400% @ 1mA
Rise / Fall Time (Typ) 20μs, 30μs
Input Type DC
Output Type Transistor
Output Voltage MAX 40V
Output Current per Channel 30mA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Maximum) 80mA
Vce Saturation (Maximum) 250mV
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 16-SMD, Gull Wing
Manufacturer Package 16-SMD
Win Source Part Number 792490-PS2503L-4-A
Popularity Medium
Supply and Demand Status Limited
Family Name PS2503L-4-A
Introduction Date November 01, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PS2503L-4-A CAD Model

Description

The CEL PS2503L-4-A optoisolator transistor, manufactured by CEL, has the following specifications:

  • Series: NEPOC
  • Package: 16-SMD, gull-wing
  • Mounting: SMD
  • Voltage Isolation: 5000Vrms
  • Current Transfer Ratio: 100% @ 1mA
  • Current Transfer Ratio (Maximum): 400% @ 1mA
  • Vce Saturation: 250mV
  • Output Voltage (MAX): 40V
  • Current - DC Forward (If) (Maximum): 80mA
  • Rise/Fall Time: 20μs, 30μs
  • Status: Obsolete
  • Supply and Demand Status: Limited
