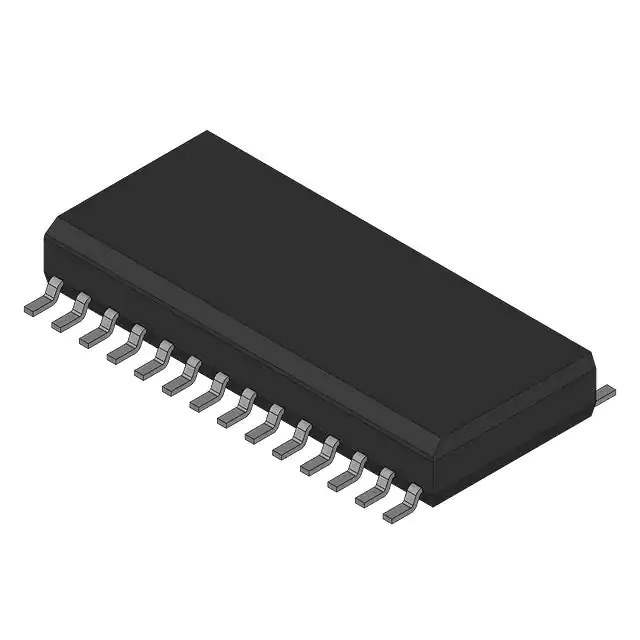

CAT28C65BX-15 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Catalyst Semiconductor
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 64Kbit
Memory Organization 8K x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 5ms
Access Time 150 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Base Product Number CAT28C65
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0051
Win Source Part Number 89057-CAT28C65BX-15
Ultra Librarian 3D Model Ultra Librarian CAT28C65BX-15 CAD Model

Description

Features and Benefits

  • Lower Power Consumption: Optimized design for reducing energy usage, extending system life.
  • Reliable Data Retention: Up to 10 years of data retention, ensuring trusted performance over time.
  • Compatible Package Options: Available in DIP and SOP packages for versatile design requirements.
  • Byte and Page Level Write: Increased flexibility in data writing, enhancing application efficiency.

Applications

  • Remote Controllers
  • Networking Equipment
  • Medical Devices
  • Instrumentation
