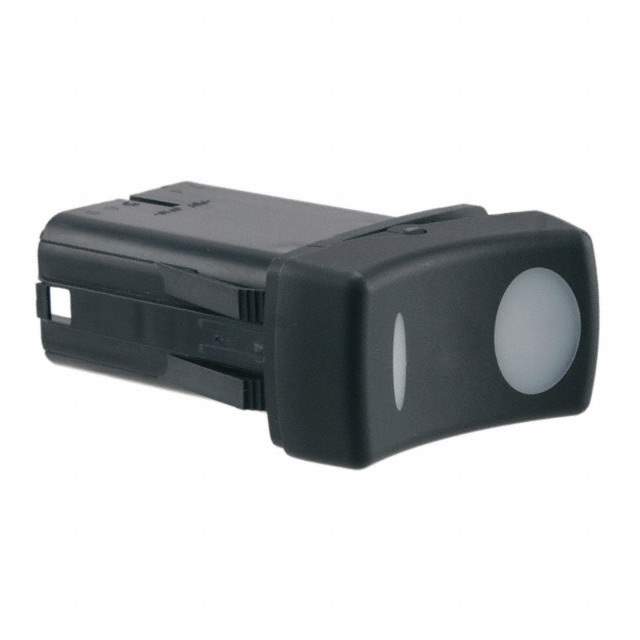

W11D2G661-A7900-000 Real Image
Same model may have multiple batches, images only for reference.

W11D2G661-A7900-000

Part No W11D2G661-A7900-000
Manufacturer Carling Technologies
Catalog Rocker Switches
Description SWITCH ROCKER SPST 10A 12V
Datasheet
W11D2G661-A7900-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Carling Technologies
Series W
Packaging Bulk
Circuit SPST
Switch Function On-Off
Current Rating 10A (DC)
Voltage Rating - DC 12V
Actuator Type Concave (Curved) - Illuminated
Color - Actuator/Cap Black
Actuator Marking No Marking
Illumination Type, Color LED, White
Illumination Voltage (Nominal) 12 VDC
Mounting Panel Mount, Snap-In
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP68 - Dust Tight, Waterproof
Features Sealed - Fully
Panel Cutout Dimensions Rectangular - 36.83mm x 21.08mm
Operating Temperature Range -40°C ~ 85°C
Mechanical Life 250,000 Cycles
Electrical Life 100,000 Cycles
Win Source Part Number 766842-W11D2G661-A7900-000
Popularity Medium
Supply and Demand Status Limited
Family Name W
Introduction Date October 01, 2009
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian W11D2G661-A7900-000 CAD Model

Description

{"FormattedDescription":"

The Carling Technologies W Series Switch is a sealed, snap-in panel mount switch that features a 10A DC current rating and is dust-tight and waterproof with an IP68 ingress protection rating.

  • Series: W
  • Mounting: Panel Mount
  • Circuit: SPST
  • Switch Function: On-Off
  • Actuator Type: Concave (Curved) Illuminated
  • Illumination Voltage (Nominal): 12VDC
  • Illumination Type: LED, White
  • Mechanical Life: 250,000 cycles
  • Electrical Life: 100,000 cycles
  • Panel Cutout Dimension: Rectangular 36.83mm x 21.08mm
  • Termination Style: Quick Connect 0.110\" (2.8mm)
  • Country of Origin: Mexico
  • Ingress Protection: IP68
"}
