Same model may have multiple batches, images only for reference.

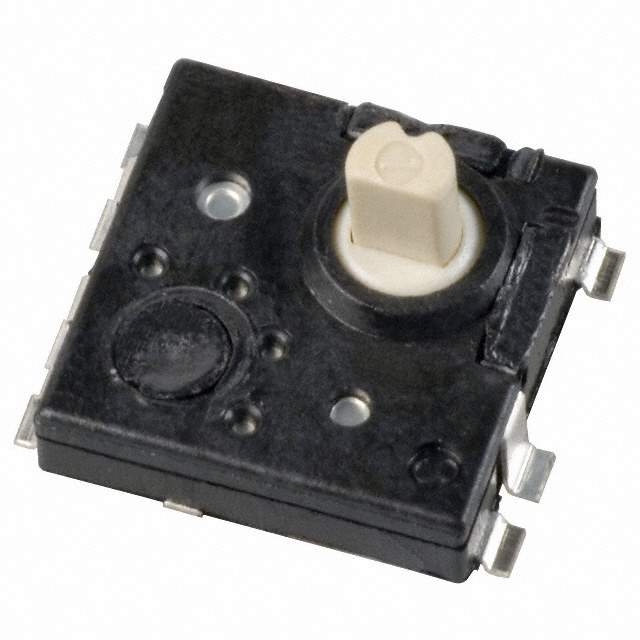

TPA511GLFS Real Image
Same model may have multiple batches, images only for reference.

TPA511GLFS

Part No TPA511GLFS
Manufacturer C&K Components
Catalog Navigation Switches, Joystick
Description SWITCH NAVIGATION 50MA 24V
Datasheet
TPA511GLFS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Status Obsolete(EOL)
Type Navigation Switch, 2 - Axis
Actuator Type Plunger for Cap
Switch Function 4-Way Directional, Center Select
Output Digital (Mechanical Switch)
Current Rating 50mA (DC)
Voltage Rating - DC 24V
Contact Finish Silver
Mounting SMD (SMT)
Termination Style Gull Wing
Temperature Range - Operating -40°C to 85°C
Mechanical Life 200,000 Cycles
Operating Force 180/400gf
Win Source Part Number 126102-TPA511GLFS
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TPA511GLFS CAD Model

Description

The C&K Components 126102-TPA511GLFS is a navigation switch with a 2-axis type and gull-wing termination style.

  • Contact Finish: Silver
  • Current Rating: 50mA (DC)
  • Voltage Rating-DC: 24V
  • Mounting: SMD (SMT)
  • Output: Digital (mechanical switch)
  • Switch Function: 4-way directional, center select
  • Actuator Type: Plunger for cap
  • Operating Force: 180/400gf
  • Mechanical Life: 200,000 cycles
  • Functions Extra: Undefined
  • Category: Switches
  • Status: Obsolete (EOL)
  • Temperature Range: -40°C to 85°C
  • Operating Supply Voltage: Undefined
  • Popularity: High popularity
  • Supply and Demand Status: Limited supply and demand status.
  • Manufacturer: C&K Components
