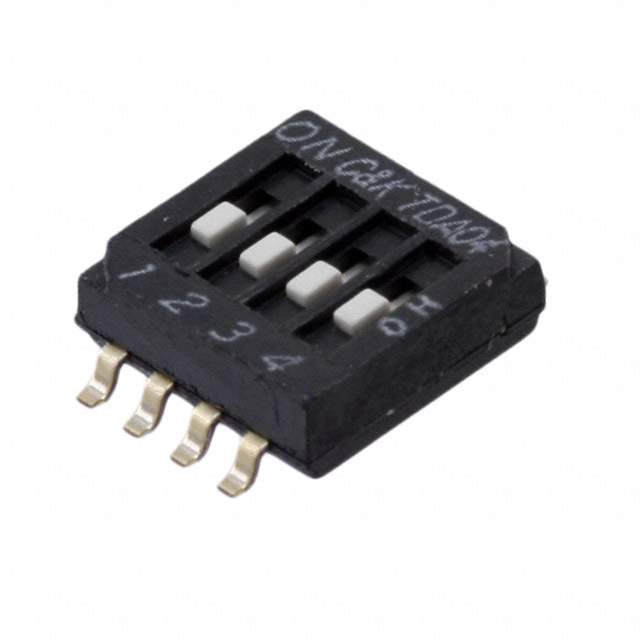

TDA04H0SB1R C&K Components TDA04H0SB1R Real Image TDA04H0SB1R label picture TDA04H0SB1R Real Image
Same model may have multiple batches, images only for reference.
TDA04H0SB1R C&K Components TDA04H0SB1R Real Image TDA04H0SB1R label picture TDA04H0SB1R Real Image
TDA04H0SB1R C&K Components TDA04H0SB1R Real Image TDA04H0SB1R label picture TDA04H0SB1R Real Image
Same model may have multiple batches, images only for reference.

TDA04H0SB1R

Part No TDA04H0SB1R
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
TDA04H0SB1R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 4
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.244" (6.20mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 145036-TDA04H0SB1R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TDA04H0SB1R CAD Model

Description

The TDA04H0SB1R is an electronic component manufactured by C&K Components.

  • Supply and Demand Status: limited
  • Type: high-quality switch with four positions
  • Pitch: 0.050" (1.27mm)
  • Termination Style: gull-wing termination style
  • Seal: tape seal
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.091" (2.30mm)
  • Length: 0.244" (6.20mm)
  • Washable: washable
  • Temperature Range: -40°C to 85°C
  • Suitability: If you need a reliable switch for your project, the TDA04H0SB1R is an excellent choice.
