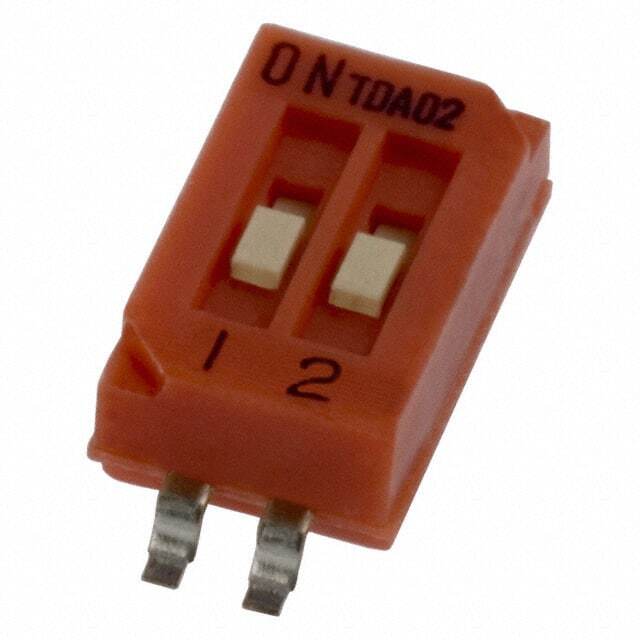

TDA02H0SK1
Same model may have multiple batches, images only for reference.

TDA02H0SK1

Part No TDA02H0SK1
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr C&K Components
Series TDA
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.144" (3.67mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Standard Package 125 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 848759-TDA02H0SK1
Ultra Librarian 3D Model Ultra Librarian TDA02H0SK1 CAD Model

Description

The TDA series DIP switch by C&K Components is a compact and reliable electronic component designed for easy circuit configuration. TDA is manufactured by C&K Components.

  • Switch Type: DIP
  • Number of Positions: 2
  • Pitch: 0.050" (1.27mm)
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Circuit: SPST
  • Length: 0.144" (3.67mm)
  • Height Above Board: 0.091" (2.30mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -20°C ~ 85°C
  • Series: TDA
