Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 6
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.698" (17.74mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names CKN1359,*SP06A
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233700-SP06A
Ultra Librarian 3D Model Ultra Librarian SP06A CAD Model

Description

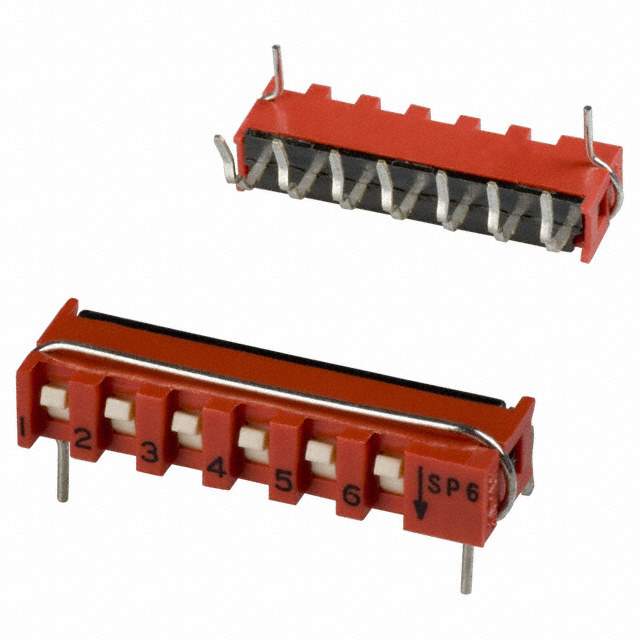

The SP series DIP switch from C&K is a 6-position through-hole mounted switch that features a slide actuator and a pitch of 0.100" (2.54mm).

  • Manufacturer: C&K
  • Positions: 6
  • Mounting: Through-hole
  • Actuator: Slide
  • Pitch: 0.100" (2.54mm)
  • Voltage Rating: 20VDC
  • Current Rating: 10mA
  • Contact Material: Beryllium copper
  • Contact Finish: Gold
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • Actuator Type: Slide (standard)
  • Actuator Level: Flush, recessed
  • Washable: Yes
  • Temperature Range: -20°C ~ 85°C
  • Material: Polybutylene Terephthalate (PBT)
