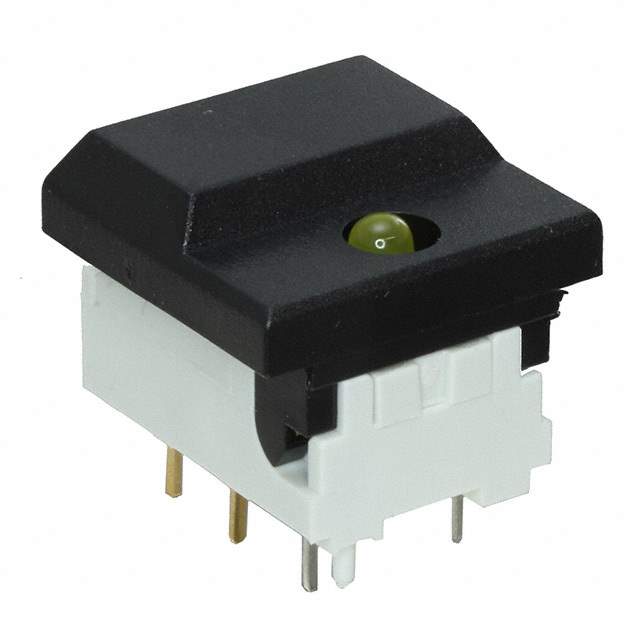

SETLBKYE7.62AUEE Real Image
Same model may have multiple batches, images only for reference.

SETLBKYE7.62AUEE

Part No SETLBKYE7.62AUEE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.01A 24V / Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole
Datasheet
SETLBKYE7.62AUEE Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series DIGITAST
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Type Keyswitch, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 24 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color LED, Yellow
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 500,000 Cycles
Base Product Number SETLB
Other Names SETL BK YE 7,62 AU EE,752010-5005,SETLBKYE7,62AUEE
Standard Package 100
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1233324-SETLBKYE7.62AUEE
Ultra Librarian 3D Model Ultra Librarian SETLBKYE7.62AUEE CAD Model

Description

The SETLBKYE7.62AUEE keyswitch from C&K is a SPDT switch with an on-on switch function.

  • Voltage Rating: 24V DC
  • Current Rating: 10mA DC
  • Actuator Type: square, button
  • Electrical Life: 500,000 cycles
  • Illumination Type: LED
  • Color: yellow
  • Actuator/Cap Color: black
  • Mounting: through hole
  • Operating Temperature Range: -25°C to 85°C
