Same model may have multiple batches, images only for reference.

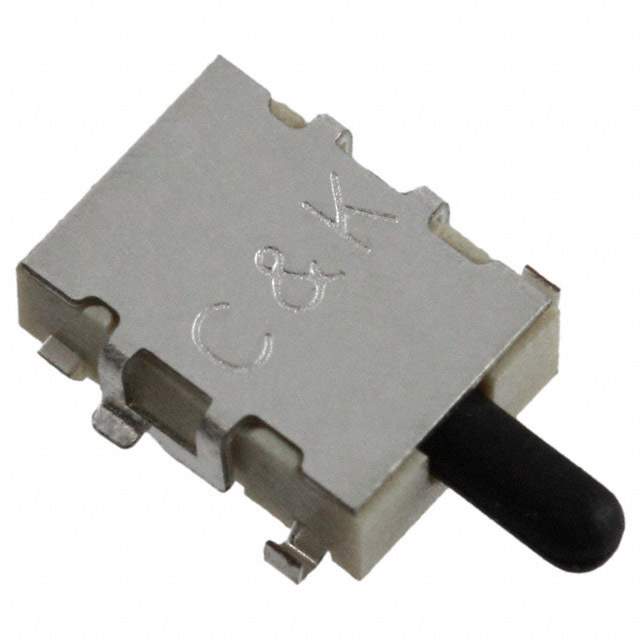

SDS002R Real Image
Same model may have multiple batches, images only for reference.

SDS002R

Part No SDS002R
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH DETECT SPST-NC 100MA 12V
Datasheet
SDS002R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 8 Weeks
Features Switch SPST-NC Surface Mount, Right Angle
Manufacturer C&K Components
Series SDS
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number *SDS002R, 2266-SDS002R, CKN10231DKR, SDS002R-ND, CKN10231TR, CKN10231CT
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 933237-SDS002R
Ultra Librarian 3D Model Ultra Librarian SDS002R CAD Model

Description

The C&K Components SDS002R is a switch that is part of the SDS series. The supply and demand status is balanced.

  • Series: SDS
  • Supply and Demand Status: Balanced
  • Type: SPST-NC
  • Mounting: Surface Mount
  • Feature: Right Angle
  • Packaging: Reel - TR
  • Quantity per Package: 3000
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 8 weeks
  • ECCN: EAR99
  • HTSUS: 8536.50.7000
  • REACH Status: REACH unaffected
