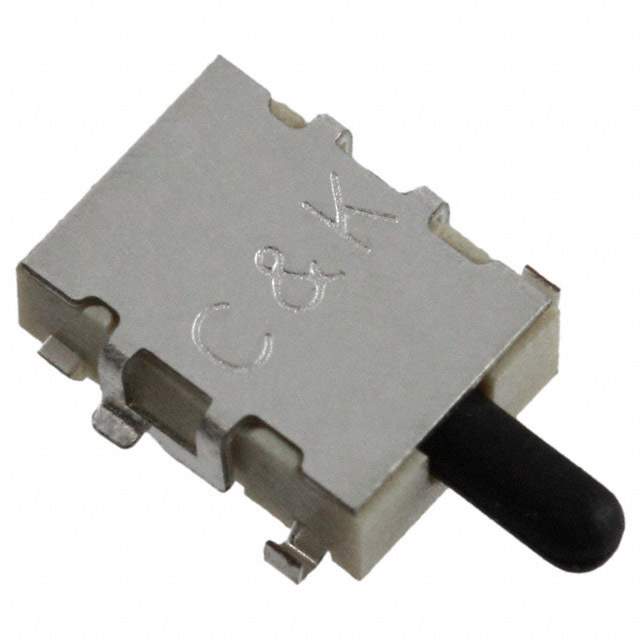

SDS002 Real Image
Same model may have multiple batches, images only for reference.

SDS002

Part No SDS002
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH DETECT SPST-NC 100MA 12V / Switch SPST-NC Surface Mount, Right Angle
Datasheet
SDS002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series SDS
Package Bulk
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Overtravel Plunger
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Operating Force 75gf
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Other Names 401-1738,*SDS002,2266-SDS002
Standard Package 2,700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233680-SDS002
Ultra Librarian 3D Model Ultra Librarian SDS002 CAD Model

Description

The C&K SDS002 is a surface mount, right angle limit switch with an overtravel plunger actuator type.

  • Mounting Type: Surface Mount, Right Angle
  • Actuator Type: Overtravel Plunger
  • Circuit: SPST-NC
  • Switch Function: On-Mom
  • Operating Force: 75gf
  • Overtravel: 0.079" (2.0mm)
  • Voltage Rating: 12 VDC
  • Current Rating: 100mA (DC)
  • Electrical Life: 50,000 Cycles
  • Mechanical Life: 50,000 Cycles
  • Temperature Range: -40°C ~ 85°C
  • REACH: Unaffected
