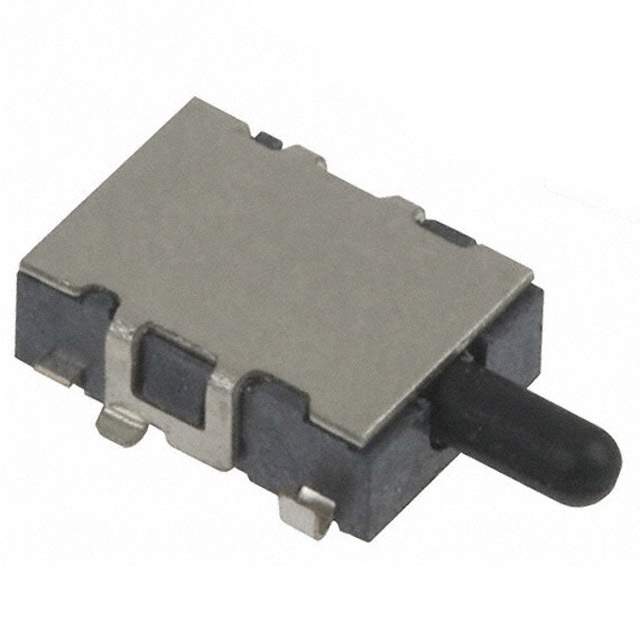

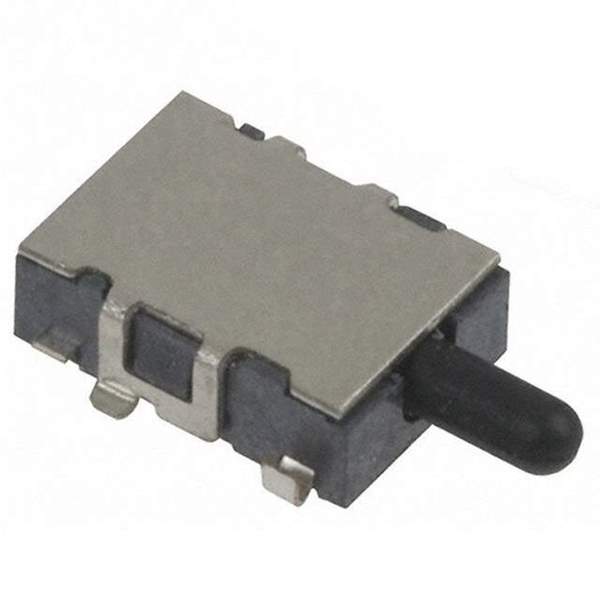

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series SDS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Overtravel Plunger
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Operating Force 75gf
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Other Names 401-1737,*SDS001,2266-SDS001
Standard Package 2,700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233679-SDS001
Ultra Librarian 3D Model Ultra Librarian SDS001 CAD Model

Description

The SDS series limit switch from C&K is a surface mount device with a right angle mounting type.

  • Mounting Type: Surface Mount, Right Angle
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Overtravel Plunger
  • Operating Force: 75gf
  • Electrical Life: 50,000 Cycles
  • Mechanical Life: 50,000 Cycles
  • Voltage Rating: 12VDC
  • Current Rating: 100mA
  • Pretravel: 0mm
  • Differential Travel: 0mm
  • Overtravel: 2mm
  • Operating Temperature: -40°C to 85°C
  • RoHS: Compliant
  • REACH: Unaffected
  • Package: Bulk
  • Ingress Protection: -
