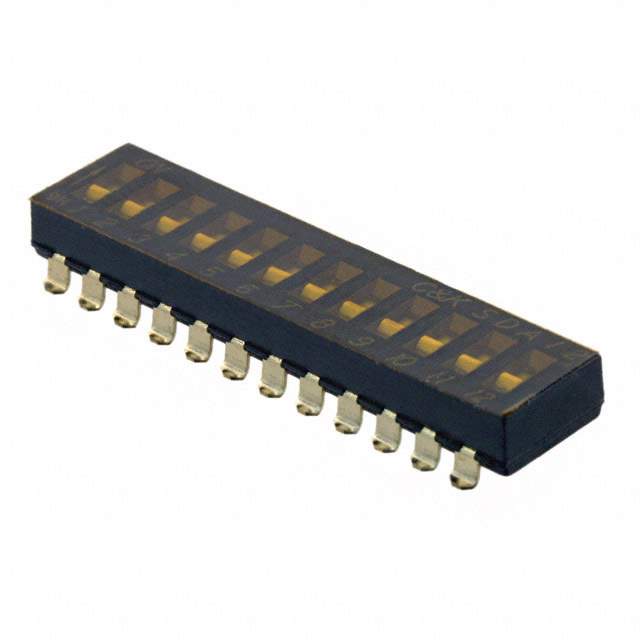

SDA12H0SB Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 12
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 1.279" (32.50mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA12H
Other Names CKN6106,2266-SDA12H0SB,*SDA12H0SB
Standard Package 14
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233774-SDA12H0SB
Ultra Librarian 3D Model Ultra Librarian SDA12H0SB CAD Model

Description

The SDA DIP switch is a high-quality switch designed for use in a variety of electronic devices.

  • Switch Type: DIP Switch
  • Actuator Type: Slide
  • Voltage Rating: 24V DC
  • Circuit Configuration: SPST
  • Number of Positions: 12
  • Termination Style: Gull Wing
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • Package: Tube (14)
