Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 7
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.778" (19.76mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA07H
Other Names *SDA07H0SBD,2266-SDA07H0SBD,CKN6084
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233760-SDA07H0SBD
Ultra Librarian 3D Model Ultra Librarian SDA07H0SBD CAD Model

Description

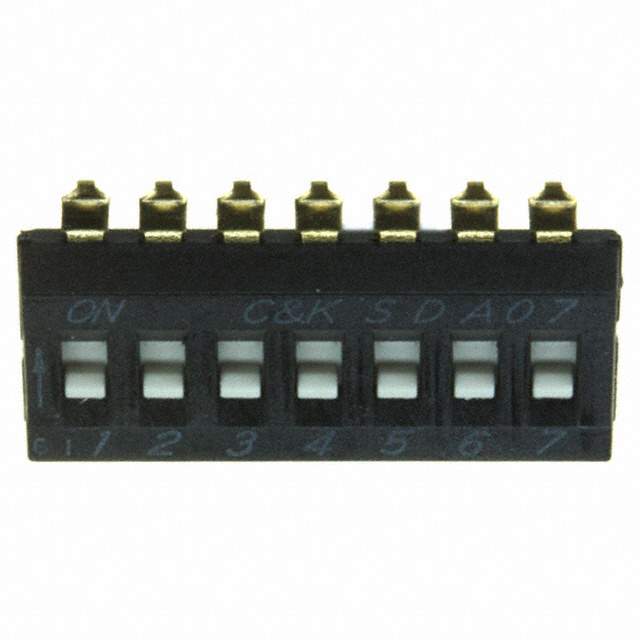

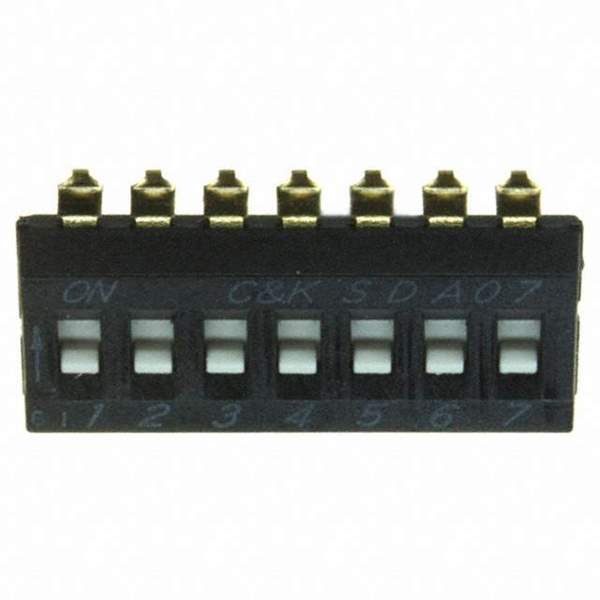

The SDA07H0SBD is a 7 position DIP switch manufactured by C&K.

  • Pitch: 0.100" (2.54mm)
  • Termination: Gull wing style
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Mounting: SMD (SMT)
  • Body Material: Polyphenylene Sulfide (PPS)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Type: Slide (standard)
  • Actuator Level: Flush, recessed
  • Temperature Range: -40°C to 85°C
  • Current: 25mA
  • Package: Tube
  • Height Above Board: 0.175" (4.45mm)
  • Length: 0.778" (19.76mm)
