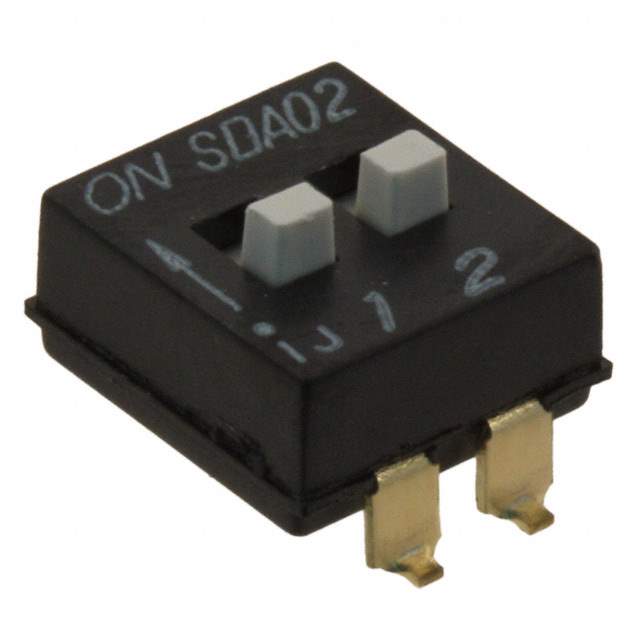

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.214" (5.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.278" (7.06mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA02H
Other Names CKN6056,*SDA02H1SBD
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233769-SDA02H1SBD
Ultra Librarian 3D Model Ultra Librarian SDA02H1SBD CAD Model

Description

The SDA02H1SBD is a SPST slide DIP switch from C&K.

  • Pitch: 0.100" (2.54mm)
  • Height Above Board: 0.214" (5.45mm)
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Termination Style: Gull Wing
  • Actuator Level: Raised
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Material: Polyphenylene Sulfide (PPS)
  • Contact Finish: Gold
  • Package: Tube
  • Mounting: SMD (SMT)
  • Washable: No
  • Temperature Range: -40°C ~ 85°C
