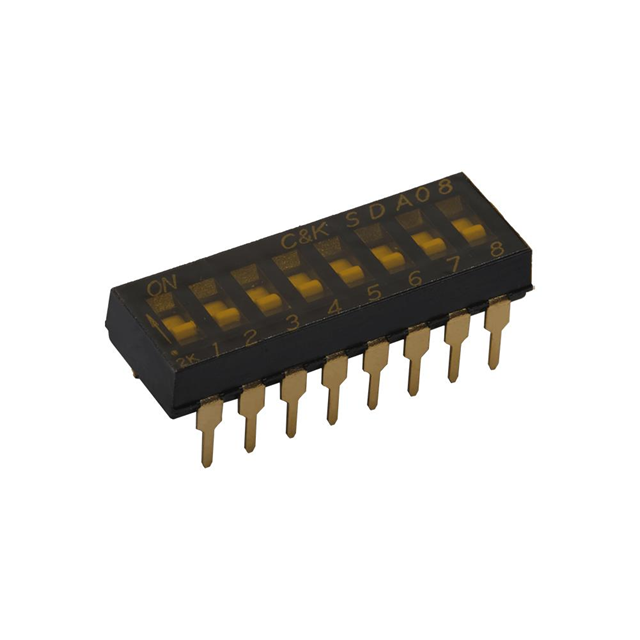

SDA01H1BD Real Image
Same model may have multiple batches, images only for reference.

SDA01H1BD

Part No SDA01H1BD
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 1 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA01H1BD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 1
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.228" (5.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.178" (4.52mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA01H
Other Names CKN12093,-SDA01H1BD,SDA01H1BD
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233781-SDA01H1BD
Ultra Librarian 3D Model Ultra Librarian SDA01H1BD CAD Model

Description

The C&K SDA01H1BD DIP switch is a SPST circuit with one position.

  • Manufacturer: C&K
  • Circuit: SPST
  • Positions: One
  • Actuator Type: Raised Slide
  • Mounting Type: Through-Hole
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Body Material: Polyphenylene Sulfide (PPS)
  • Contact Finish: Gold
  • Height Above Board: 0.228 inches
  • Length: 0.178 inches
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
