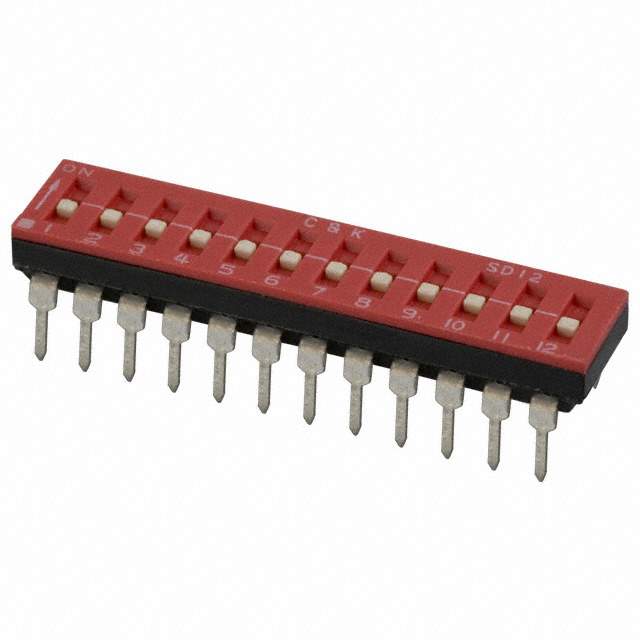

SD12H0B Real Image
Same model may have multiple batches, images only for reference.

SD12H0B

Part No SD12H0B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 12 Position Through Hole Slide (Standard) Actuator 100mA 25VDC
Datasheet
SD12H0B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Circuit SPST
Number of Positions 12
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.178" (4.52mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 1.258" (31.95mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD12H0
Other Names 2266-SD12H0B,*SD12H0B,CKN6136
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233828-SD12H0B
Ultra Librarian 3D Model Ultra Librarian SD12H0B CAD Model

Description

The SD12H0B is a DIP switch from C&K Components that features twelve positions and a pitch of 0.100 inches (2.54mm), full.

  • Termination: PC Pin
  • Contact Finish: Gold
  • Voltage Rating: 25VDC
  • Body Material: Polyphthalamide (PPA)
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Washable: Yes
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Actuator Level: Flush, Recessed
  • REACH Compliant: No
  • Current Rating: 100mA
  • Temperature Range: -40°C to 85°C
  • Obsolete: No
  • REACH: Unaffected
