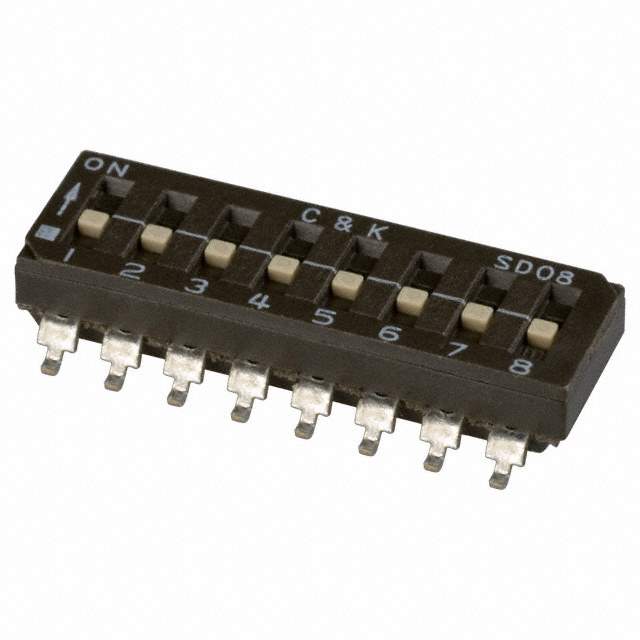

SD08H0SBR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tape & Reel
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.170" (4.33mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.858" (21.80mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD08H0
Other Names CKN6128TR,*SD08H0SBR,CKN6128DKR,CKN6128CT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233845-SD08H0SBR
Ultra Librarian 3D Model Ultra Librarian SD08H0SBR CAD Model

Description

The SD series DIP switch from C&K is a single pole, single throw switch with a slide actuator.

  • Circuit: SPST
  • Pitch: 0.100" (2.54mm), full
  • Positions Number: 8
  • Mounting Type: surface mount
  • Voltage Rating: 25VDC
  • Current Rating: 100mA
  • Contact Finish: gold
  • Contact Material: beryllium copper
  • Body Material: Polyphthalamide (PPA)
  • Height Above the Board: 0.170" (4.33mm)
  • Mechanical Life: 2,000 cycles
  • Electrical Life: 2,000 cycles
  • Package: tape & reel
  • Operating Temperature Range: -40°C ~ 85°C
  • Actuator Level: flush, recessed
  • Washable: Yes
