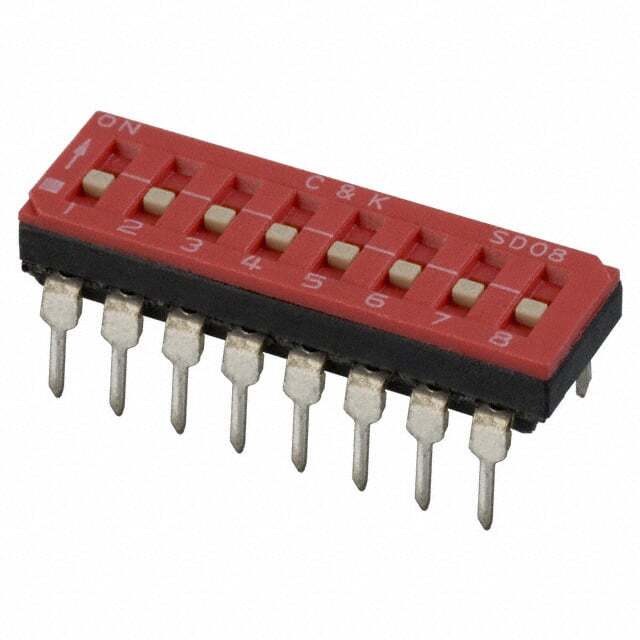

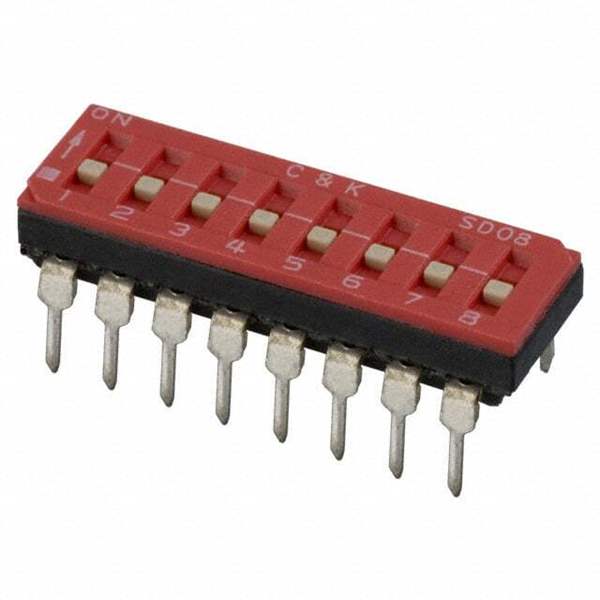

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.178" (4.52mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.858" (21.80mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1316200-SD08H0K
Ultra Librarian 3D Model Ultra Librarian SD08H0K CAD Model

Description

The SD series DIP switch is a high-quality component from C&K.

  • Positions: 8
  • Pitch: 0.100 inches (2.54mm)
  • Termination Style: Full termination with PC pins
  • Voltage Rating: 25VDC
  • Circuit: SPST
  • Actuator Type: Slide
  • Actuator Level: Flush and recessed
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Package: Tube
  • Height Above Board: 0.178 inches (4.52mm)
  • Length: 0.858 inches (21.80mm)
  • Body Material: Polybutylene Terephthalate (PBT)
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Seal: Tape Seal
