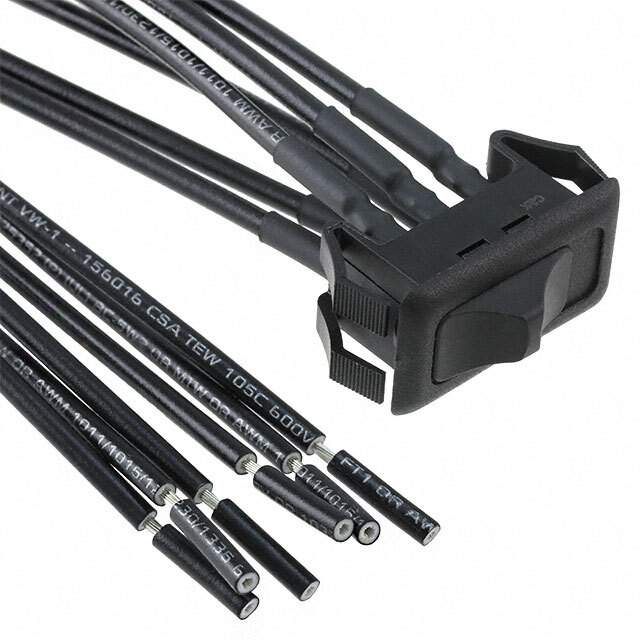

S802C21S2WCQ Real Image
Same model may have multiple batches, images only for reference.

S802C21S2WCQ

Part No S802C21S2WCQ
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 15A 125V / Slide Switch DPDT Panel Mount, Snap-In
Datasheet
S802C21S2WCQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Snap on Cap
Actuator Length 5.08mm
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount, Snap-In
Termination Style Wire Leads
Features Black Actuator
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S802C21
Other Names CKC5011,*S802C21S2WCQ,2266-S802C21S2WCQ
Standard Package 72
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233172-S802C21S2WCQ
Ultra Librarian 3D Model Ultra Librarian S802C21S2WCQ CAD Model

Description

The S802C21S2WCQ is a DPDT slide switch from the S series of C&K. It has a snap-on cap actuator type with an actuator length of 5.08mm and switch travel of 4.57mm.

  • Circuit: DPDT
  • Actuator Type: Snap-On Cap
  • Actuator Length: 5.08mm
  • Switch Travel: 4.57mm
  • Actuator Material: Polyamide (PA66) and Nylon 6/6
  • Voltage Rating: 125 V AC
  • Current Rating: 15A
  • Contact Finish: Silver
  • Contact Material: Copper
  • Mounting Type: Panel Mount and Snap-In
  • Temperature Range: -30°C ~ 65°C
  • Electrical Life: 10,000 cycles
