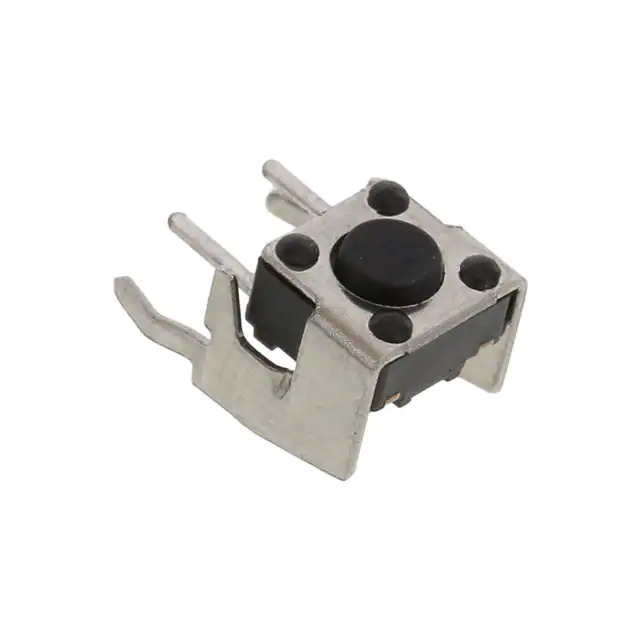

Same model may have multiple batches, images only for reference.

PTS645VL31-2 LFS

Name: PTS645VL31-2 LFS
Brand: C&K Components
SKU: 1376564
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTS645VL31-2 LFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet	PTS645VL31-2 LFS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	C&K
Series	PTS645
Package	Bulk
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Through Hole, Right Angle
Actuator Height off PCB, Vertical	-
Actuator Length, Right Angle	3.15mm
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	7.00mm x 7.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	130gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	Polyamide (PA66), Nylon 6/6
Switch Travel	-
Mechanical Life	100,000 Cycles
Base Product Number	PTS645
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376564-PTS645VL31-2 LFS
Ultra Librarian 3D Model	Ultra Librarian PTS645VL31-2 LFS CAD Model

Description

The PTS645VL31-2 LFS is a tactile switch from C&K's PTS645 series.

Pole Throw Configuration: Single-pole, single-throw
Switch Function: Normally open, off-momentary
Size: 7.00mm x 7.00mm
Mounting Type: Through-hole, right angle
Mechanical Life: 100,000 cycles
Contact Rating: 0.05A @ 12VDC
Actuator Height: Not specified
Material: Polyamide (PA66) and nylon 6/6
Temperature Range: -40°C to 85°C
Illumination: Non-illuminated
Features: None
Packaging: Bulk
Production Status: Active
