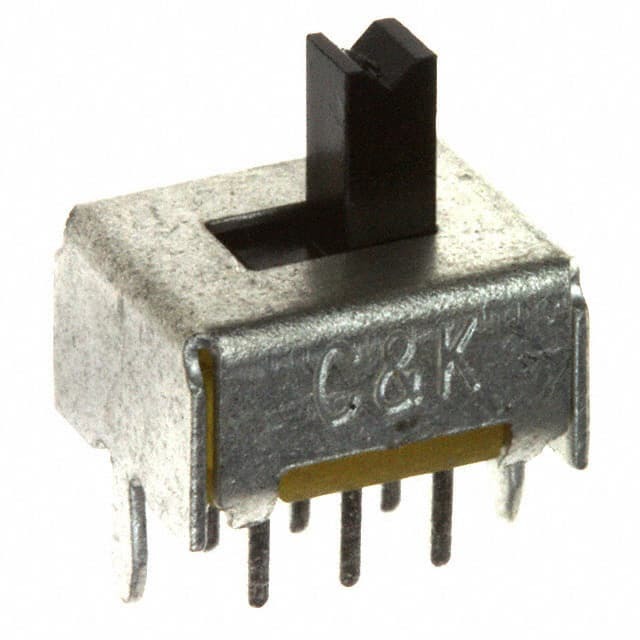

Same model may have multiple batches, images only for reference.
OS202011MS2QS1 C&K Components
Same model may have multiple batches, images only for reference.

OS202011MS2QS1

Part No OS202011MS2QS1
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 100MA 12V
Datasheet
OS202011MS2QS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series OS
Package Bulk
Product Status Active
Circuit DPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 70°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Operating Force -
Base Product Number OS202011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376215-OS202011MS2QS1
Ultra Librarian 3D Model Ultra Librarian OS202011MS2QS1 CAD Model

Description

The OS202011MS2QS1 is a slide switch manufactured by C&K.

  • Switch Type: Slide Switch
  • Configuration: DPDT
  • Switch Function: On-On
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 10,000 Cycles
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Voltage Rating (DC): 12V
  • Actuator Type: Standard
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Switch Travel: 2.00mm
  • Actuator Length: 4.00mm
  • Features: Epoxy Sealed Terminals
