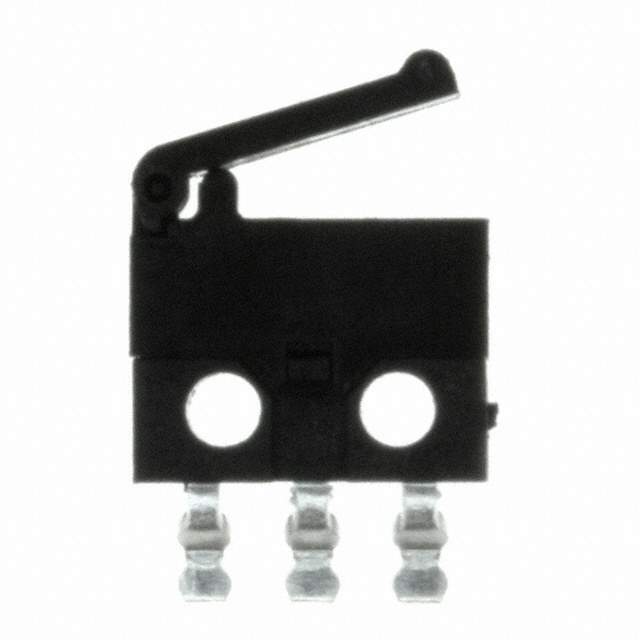

MDS6500AL02SR Real Image
Same model may have multiple batches, images only for reference.

MDS6500AL02SR

Part No MDS6500AL02SR
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 300MA 30V  /  Switch SPDT Surface Mount, Right Angle
Datasheet
MDS6500AL02SR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series MDS
Package Tape & Reel
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Operating Force 50gf
Release Force 3.000gf
Pretravel 0.071" (1.8mm)
Overtravel 0.011" (0.3mm)
Temperature Range - Operating -25°C ~ 70°C
Operating Position 0.264" (6.7mm)
Electrical Life 30,000 Cycles
Mechanical Life 30,000 Cycles
Base Product Number MDS6500A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Names *MDS6500AL02SR,CKN9573DKR,2266-MDS6500AL02SR,CKN9573TR,CKN9573CT
Standard Package 1,600
Win Source Part Number 987253-MDS6500AL02SR
Ultra Librarian 3D Model Ultra Librarian MDS6500AL02SR CAD Model

Description

The MDS6500AL02SR is a limit switch from C&K.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever and Straight
  • Electrical Life: 30,000 Cycles
  • Operating Force: 50gf
  • Mechanical Life: 30,000 Cycles
  • Release Force: 3.000gf
  • Pretravel: 0.071" (1.8mm)
  • Overtravel: 0.011" (0.3mm)
  • Operating Position: 0.264" (6.7mm)
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature: -25°C to 70°C
