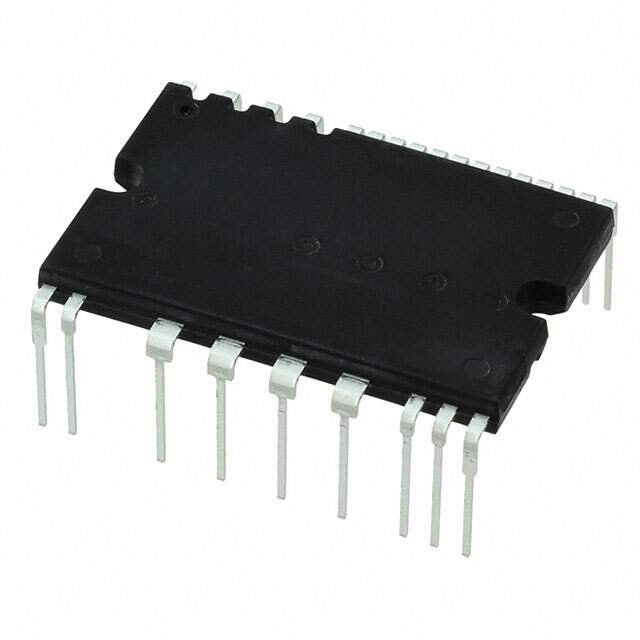

STGIF5CH60TS-L Intelligent Power Module from STMicroelectronics

The STGIF5CH60TS-L is a state-of-the-art intelligent power module (IPM) designed and manufactured by STMicroelectronics, a global semiconductor leader. This advanced module is specifically engineered to drive high-power applications that require efficient and reliable control of AC motors, such as those used in industrial drives, air conditioners, and washing machines.

Key Features

• Integrated Design: The STGIF5CH60TS-L combines IGBTs, freewheeling diodes, and an optimized gate drive circuit in a compact, insulated package. This integration helps to minimize parasitic inductance and reduce electromagnetic interference (EMI), enhancing overall system performance.
• High Voltage and Current Rating: With a maximum rating of 600V and 5A, this IPM can handle robust power requirements, making it suitable for a wide range of high-power applications.
• Overcurrent Protection: The module includes an overcurrent shutdown feature to protect the system from damage due to excessive current flow.
• Thermal Management: The STGIF5CH60TS-L is equipped with an over-temperature protection system, ensuring safe operation and longevity of the module by preventing overheating.
• Under-voltage Lockout: The built-in under-voltage lockout (UVLO) feature ensures that the IGBTs are not turned on when the supply voltage is too low, preventing malfunction.

Applications

The STGIF5CH60TS-L is designed for a variety of applications, including but not limited to:

• AC motor drives
• Industrial automation systems
• Home appliances like air conditioners and washing machines
• Fans and pumps

Advantages

Using the STGIF5CH60TS-L IPM offers several advantages:

• Reduces the complexity of the circuit design and simplifies the PCB layout.
• Improves system reliability and extends the service life of the application.
• Enhances thermal performance, allowing for more efficient heat dissipation.
• Provides a compact solution, saving space and reducing the overall size of the application.

STMicroelectronics' commitment to innovation is evident in the STGIF5CH60TS-L, providing designers with a reliable and high-performing solution for their power control needs.
