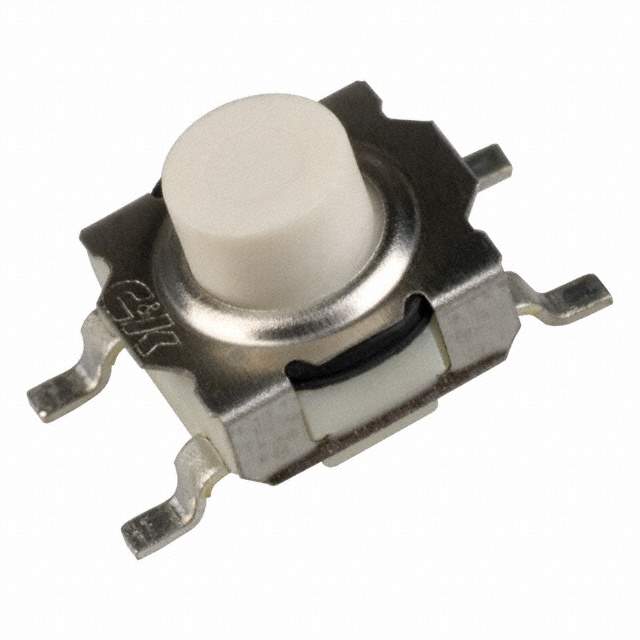

KT11P2SM Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Packaging Cut Tape (CT)
Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 1VA at 50VAC/DC
Actuator Type Standard
Mounting Style SMD
Actuator Height off PCB, Vertical 5.36mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.38mm x 6.22mm
Illumination Non-Illuminated
Ingress Protection IP57 - Dust Protected, Waterproof
Features Sealed
Temperature Range - Operating -40°C ~ 90°C
Actuator Material Polyamide (PA), Nylon
Mechanical Life 100,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1193854-KT11P2SM
Manufacturer Homepage www.ck-components.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KT11P2SM CAD Model

Description

This is a gull wing style, sealed switch from C&K with a Win Source Part Number of 1193854-KT11P2SM. It is a SPST-NO switch with an off-mom switch function and a circuit of 1VA @ 50VAC/DC.

  • Switch Function: Off-Mom
  • Circuit: 1VA @ 50VAC/DC
  • Actuator Material: Polyamide (PA), Nylon
  • Protection: Dust Protected and Waterproof
  • Ingress Protection: IP57
  • Mechanical Life: 100,000 cycles
  • Operating Temperature Range: -40°C to 90°C
  • Outline: 6.38mm x 6.22mm
  • Actuator Height off PCB, Vertical: 5.36mm
  • Illumination: Non-Illuminated
  • Popularity: Medium
  • Supply and demand status: Limited
  • Manufacturer Pack Quantity: 1
