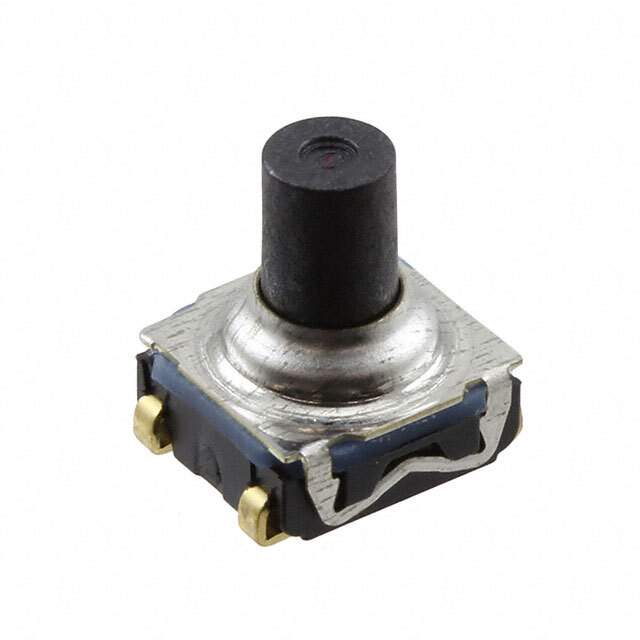

Same model may have multiple batches, images only for reference.

KSC623JLFG

Name: KSC623JLFG
Brand: C&K Components
SKU: 1091640
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	KSC623JLFG
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.01A 32V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	KSC623JLFG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	C&K
Series	KSC
Package	Tape & Reel
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.01A @ 32VDC
Actuator Type	Standard
Mounting	SMD (SMT)
Actuator Height off PCB, Vertical	7.70mm
Actuator Orientation	Top Actuated
Termination Style	J Lead
Outline	6.20mm x 6.20mm
Illumination	Non-Illuminated
Operating Force	170gf
Ingress Protection	IP67 - Dust Tight, Waterproof
Temperature Range - Operating	-40°C ~ 125°C
Switch Travel	0.40mm
Mechanical Life	300,000 Cycles
Base Product Number	KSC6
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	KSC623J LFG,KSC623JLFG-ND,CKN10929-ND,*KSC623JLFG,Y31A23051FP LFG,CKN10929CT,CKN10929TR,CKN10929DKR,CKN10929,2266-KSC623JLFG
Standard Package	950
Win Source Part Number	1091640-KSC623JLFG
Ultra Librarian 3D Model	Ultra Librarian KSC623JLFG CAD Model

Description

The C&K KSC623JLFG is a tactile switch with a J lead termination style.

Series: KSC
Package: Tape & Reel
Ingress Protection: IP67
Actuator Height off PCB, Vertical: 7.70mm
Actuator Length, Right Angle: -
Circuit Configuration: SPST-NO
Switch Function: Off-Mom
Actuator Type: Standard
Switch Travel: 0.40mm
Contact Rating @ Voltage: 0.01A @ 32VDC
Operating Force: 170gf
Mechanical Life: 300,000 Cycles
Temperature Range - Operating: -40°C to 125°C
REACH: Unaffected
ECCN: EAR99
MSL Level: 1 (Unlimited)
