HDT0104 C&K Components
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr C&K
Series HDT
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Ingress Protection -
Features -
Operating Force 35gf
Release Force -
Operating Position 0.197" (5.0mm)
Pretravel 0.012" (0.3mm)
Differential Travel -
Overtravel 0.045" (1.1mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 100,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1376165-HDT0104
Ultra Librarian 3D Model Ultra Librarian HDT0104 CAD Model

Description

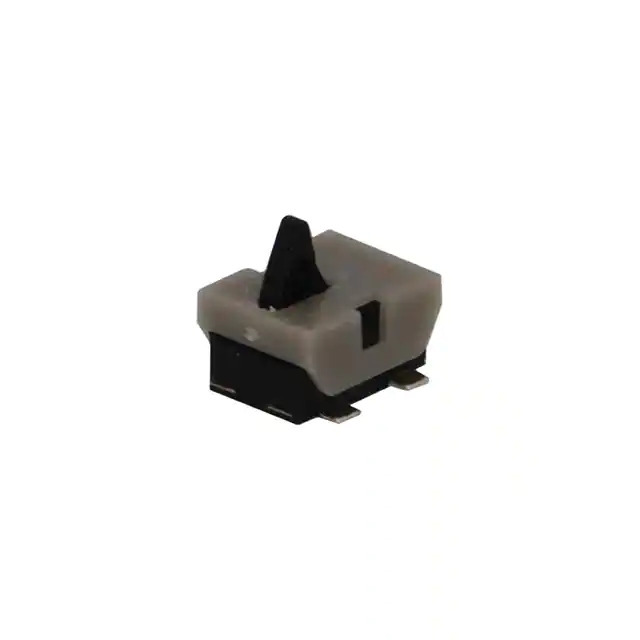

The HDT0104 is a limit switch from C&K's HDT series.

  • Actuator: Angled toggle
  • Switch Function: Off-momentary
  • Circuit: SPST-NO
  • Voltage Rating: 5V DC
  • Current Rating: 1mA (DC)
  • Mounting Type: Surface mount
  • Termination Style: SMD (SMT) tab
  • Mechanical Life: 100,000 cycles
  • Operating Force: 35gf
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Series: HDT
  • Manufacturer: C&K
