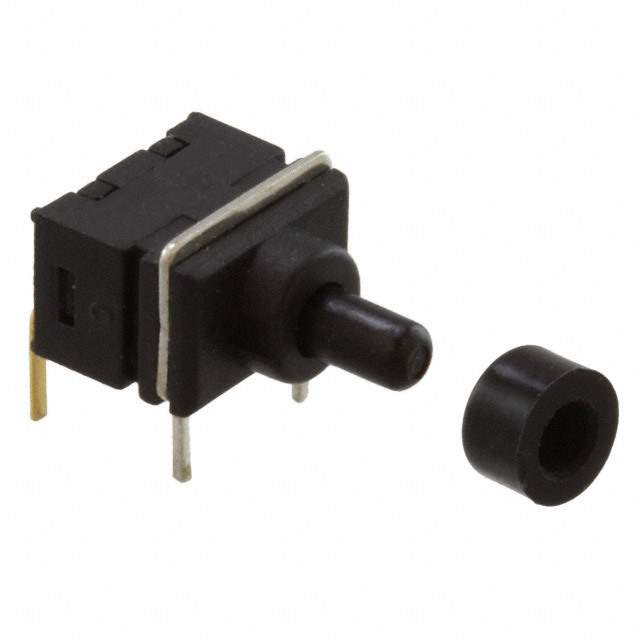

FP11SPA1B1TP02 Real Image
Same model may have multiple batches, images only for reference.

FP11SPA1B1TP02

Part No FP11SPA1B1TP02
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.4VA 28V / Pushbutton Switch SPST-NO Standard Through Hole, Right Angle
Datasheet
FP11SPA1B1TP02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series FP
Package Tray
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 80°C
Electrical Life 50,000 Cycles
Base Product Number FP11SPA1
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1349068-FP11SPA1B1TP02
Ultra Librarian 3D Model Ultra Librarian FP11SPA1B1TP02 CAD Model

Description

The FP11SPA1B1TP02 is a pushbutton switch from C&K.

  • Switch Type: Standard
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Round Button
  • Actuator Color: Black
  • Voltage Rating: 28V AC/DC
  • Current Rating: 0.4VA
  • Electrical Life: 50,000 Cycles
  • Mechanical Life: Not Specified
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -20°C to 80°C
  • Illuminated: No
  • Ingress Protection: No Ingress Protection
  • Package: Tray
  • Panel Cutout Dimension: Not Specified
  • ECCN: EAR99
  • REACH Status: Unaffected by REACH
