Same model may have multiple batches, images only for reference.

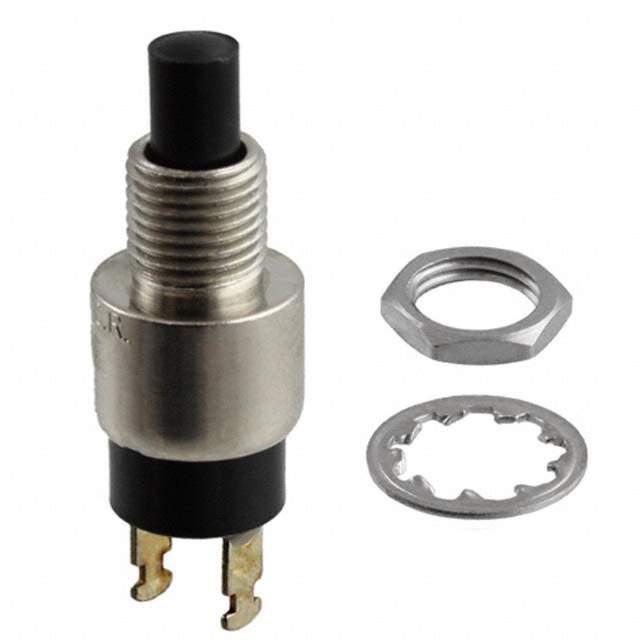

8533SZQE2 Real Image
Same model may have multiple batches, images only for reference.

8533SZQE2

Part No 8533SZQE2
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NC 1A 120V / Pushbutton Switch SPST-NC Standard Panel Mount, Rear
Datasheet
8533SZQE2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series 8500
Package Tray
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style Solder Lug
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 6.35mm Dia
Temperature Range - Operating -30°C ~ 65°C
Electrical Life 250,000 Cycles
Base Product Number 8533S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Other Names *8533SZQE2,CKN10190,-8533SZQE2,8533SZQE2-ND
Standard Package 80
Win Source Part Number 1041220-8533SZQE2
Ultra Librarian 3D Model Ultra Librarian 8533SZQE2 CAD Model

Description

The 8533SZQE2 is a panel mount pushbutton switch manufactured by C&K.

  • Panel Cutout Dimension: 6.35mm
  • Circuit: SPST-NC
  • Actuator Type: Round Plunger
  • Switch Function: On-Mom
  • Voltage Rating: 120V AC and 28V DC
  • Mechanical Life: 250,000 cycles
  • Current Rating: 1A (AC/DC)
  • RoHS Compliant: Yes
  • REACH Affected: Yes
