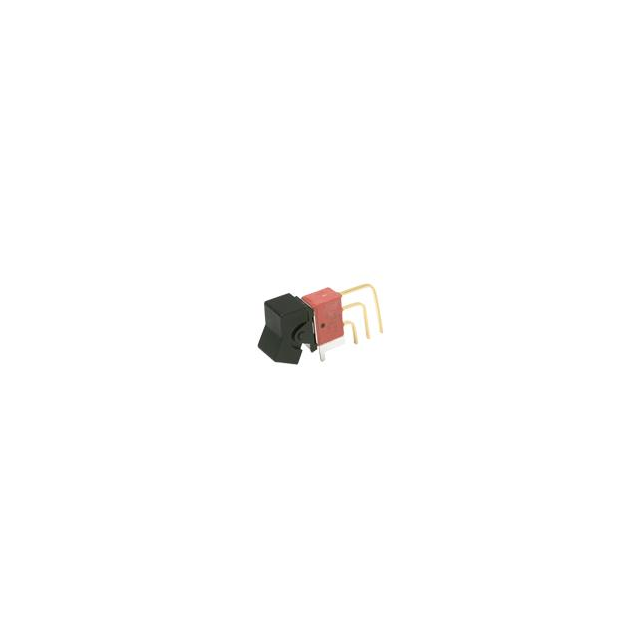

E201J1AV2BE2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr C&K
Series E
Package Bulk
Mounting Type Through Hole, Right Angle, Vertical
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Concave (Standard V)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style PC Pin
Features Sealed - Flux Protection
Panel Cutout Dimensions Rectangular - 17.96mm x 10.62mm
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 40,000 Cycles
Base Product Number E201J
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1338715-E201J1AV2BE2
Ultra Librarian 3D Model Ultra Librarian E201J1AV2BE2 CAD Model

Description

This C&K E Series DPDT rocker switch is a high-quality component designed for use in a range of electronic applications.

  • Voltage Rating: 20V AC/DC
  • Current Rating: 0.4VA
  • Design: Sealed with Flux Protection
  • Actuator Type: Concave
  • Switch Function: On-On
  • Mechanical Life: 40,000 Cycles
  • Operating Temperature Range: -30°C to 85°C
  • Mounting Options: Through Hole, Right Angle, or Vertically
