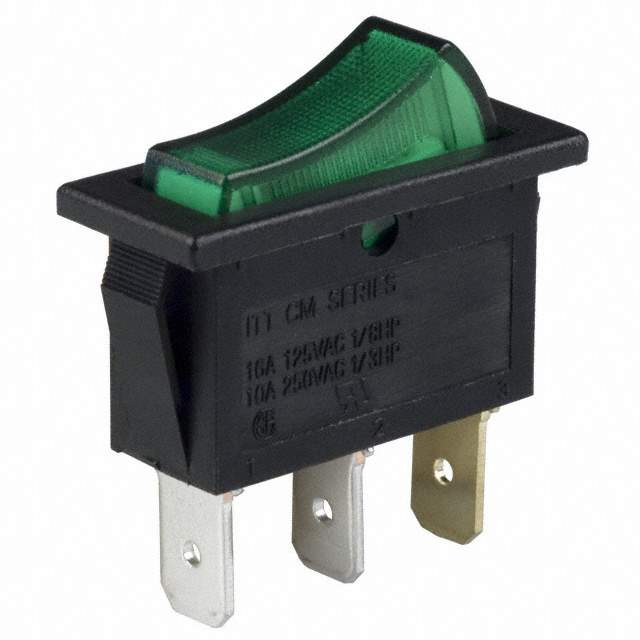

CM102J3GS205QA7 Real Image
Same model may have multiple batches, images only for reference.

CM102J3GS205QA7

Part No CM102J3GS205QA7
Manufacturer C&K Components
Catalog Rocker Switches
Description SWITCH ROCKER SPST 16A 125V / Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
Datasheet
CM102J3GS205QA7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr C&K
Series CM
Package Tray
Mounting Type Panel Mount, Snap-In
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved) - Illuminated
Color - Actuator/Cap Green
Actuator Marking No Marking
Illumination Type, Color Neon, Green
Illumination Voltage (Nominal) 125 VAC
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Rectangular - 30.40mm x 11.20mm
Temperature Range - Operating -20°C ~ 80°C
Electrical Life 10,000 Cycles
Base Product Number CM102J
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names *CM102J3GS205QA7,401-1357-ND,2266-CM102J3GS205QA7,CKN12228,401-1357,-CM102J3GS205QA7
Standard Package 50
Win Source Part Number 1108594-CM102J3GS205QA7
Ultra Librarian 3D Model Ultra Librarian CM102J3GS205QA7 CAD Model

Description

The C&K CM102J3GS205QA7 is a panel mount snap-in rocker switch with a concave (curved) illuminated actuator type.

  • Mounting Type: Panel Mount, Snap-In
  • Actuator Type: Concave (Curved), Illuminated
  • Circuit: SPST
  • Voltage Rating: 125VAC
  • Current Rating: 16A (AC)
  • Electrical Life: 10,000 Cycles
  • Mechanical Life: - Cycles
  • Termination Style: Quick Connect - 0.250 inches (6.3mm)
  • Panel Cutout Dimensions: Rectangular - 30.40mm x 11.20mm
  • Color: Green
  • Illumination Voltage: 125VAC
  • Category: Rocker Switches
  • Manufacturer: C&K
