Same model may have multiple batches, images only for reference.

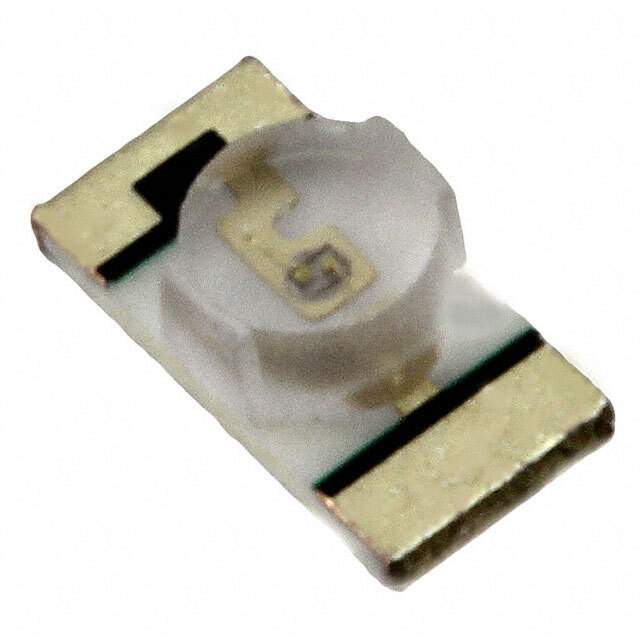

156120GS75300 Real Image
Same model may have multiple batches, images only for reference.

156120GS75300

Part No 156120GS75300
Manufacturer Wurth Electronics Inc
Catalog LED Indication - Discrete
Description WL-SMRW SMD chip LED reverse mount mono-color waterclear | LED GREEN CLEAR 1206 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Wurth Electronics Inc.
Packaging Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 235mcd
Lens Style Round with Flat Top
Lens Size 1.60mm Dia
Voltage - Forward (Vf) 3.3V
Current - Test 20mA
Viewing Angle 140°
Mounting Style SMT, Bottom Entry
Wavelength - Dominant 525nm
Wavelength - Peak 520nm
Manufacturer Package 1206
Supplier Device Package 1206
Parts Dimension 3.20mm L x 1.60mm W
Height (Maximum) 1.40mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1121316-156120GS75300
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 156120GS75300 CAD Model

Description

The 1206 SMD LED is a standard configuration component that comes with a round flat top lens style and a viewing angle of 140 degrees manufactured by Wurth Electronics Inc.

  • Lens Style: Round flat top
  • Viewing Angle: 140 degrees
  • Millicandela Rating: 235mcd
  • Wavelength-Dominant: 525nm
  • Peak Wavelength: 520nm
  • Voltage-Forward (Vf): 3.3V
  • LED Color: Colorless
  • Lens: Transparent
  • Size: 1.60mm diameter
  • Application: Optoelectronic
  • Package: 1206
  • Height: 1.40mm
  • Supply and Demand Status: Limited
  • Popularity: Medium
