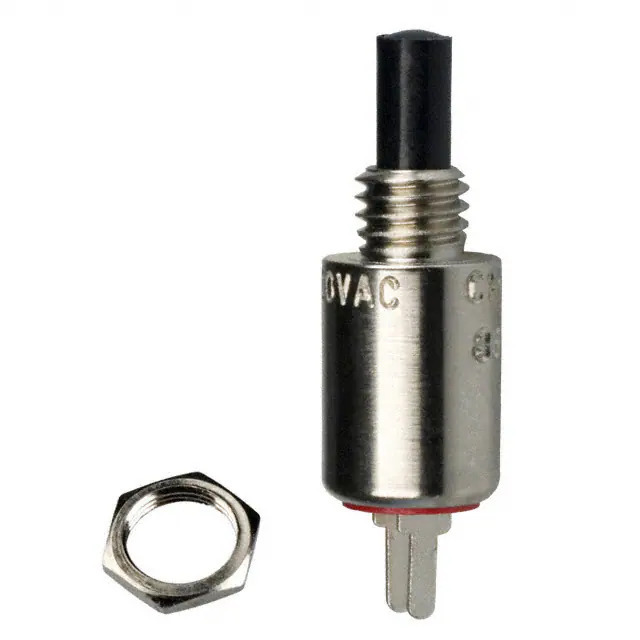

8632CQD2 C&K Components
Same model may have multiple batches, images only for reference.

8632CQD2

Part No 8632CQD2
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.5A 120V
Datasheet
8632CQD2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series 8600
Package Tray
Product Status Active
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 500mA (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features -
Panel Cutout Dimensions Circular - 4.37mm Dia
Temperature Range - Operating -30°C ~ 65°C
Mechanical Life -
Electrical Life 100,000 Cycles
Base Product Number 8632C
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376056-8632CQD2
Ultra Librarian 3D Model Ultra Librarian 8632CQD2 CAD Model

Description

The 1376056-8632CQD2 is a pushbutton switch from C&K's 8600 series.

  • Current Rating: 500mA (AC/DC)
  • Voltage Rating: 120V AC and 28V DC
  • Actuator Type: plunger for cap
  • Actuator/Cap Color: black
  • Circuit: SPST-NO
  • Switch Function: off-mom
  • Mounting Type: panel mount, rear mounting
  • Panel Cutout Dimensions: circular, measuring 4.37mm in diameter
  • Temperature Range: -30°C to 65°C
  • Product Status: active
  • REACH Status: affected
