Products specifications

Category Switches>Pushbutton Switches
Mfr C&K
Series 8020
Package Tray
Mounting Type Through Hole, Right Angle, Vertical
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style PC Pin
Features Tactile Feedback
Temperature Range - Operating -30°C ~ 75°C
Electrical Life 60,000 Cycles
Base Product Number 8125SD
Other Names *8125SD9AV2BE,2266-8125SD9AV2BE,CKN4030
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1233386-8125SD9AV2BE
Ultra Librarian 3D Model Ultra Librarian 8125SD9AV2BE CAD Model

Description

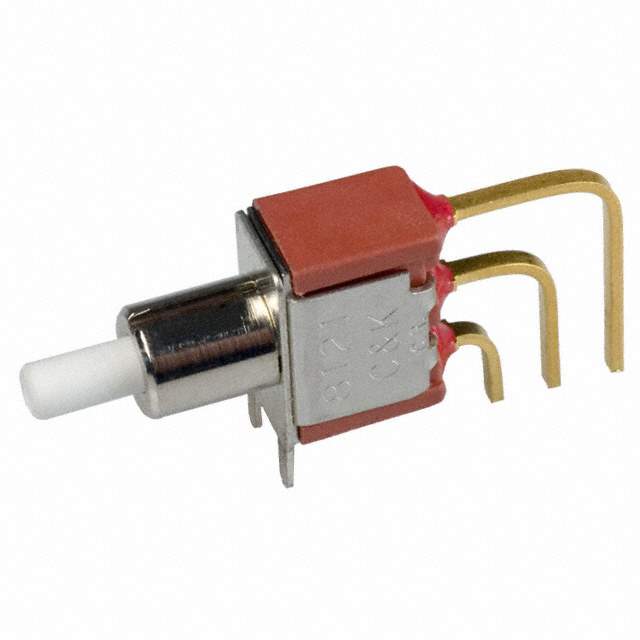

The C&K Components 8125SD9AV2BE is a high-quality pushbutton switch designed for various applications requiring reliable and tactile switching. This switch features a compact design and robust construction, making it suitable for use in a wide range of electronic devices and control panels.

Applications:

  • Control Panels: Used in industrial control panels for operator input and control.
  • Electronic Devices: Integrated into consumer electronics, such as audio equipment and appliances.
  • Instrumentation: Employed in test and measurement equipment for function selection.
  • Medical Devices: Used in medical equipment requiring reliable and precise switching.
  • Automotive Applications: Integrated into automotive control systems for various functions.

Features:

  • Tactile Feedback: Provides a clear tactile response for user confirmation.
  • Momentary Action: Operates as a momentary switch, returning to its original position when released.
  • Compact Size: Small form factor allows for high-density mounting on PCBs.
  • Durable Construction: Designed to withstand repeated actuation and harsh environmental conditions.
  • RoHS Compliant: Meets environmental standards for hazardous substance restrictions.

Benefits:

  • Reliable Switching: Ensures consistent and dependable performance over its lifespan.
  • User-Friendly: Provides a comfortable and intuitive user experience.
  • Space-Saving: Compact design allows for efficient use of PCB space.
  • Long Lifespan: Offers a long operating life, reducing the need for frequent replacements.
  • Environmentally Friendly: Complies with RoHS standards, minimizing environmental impact.

Additional Details:

The C&K Components 8125SD9AV2BE pushbutton switch typically features a through-hole mounting style for secure attachment to PCBs. The switch's electrical specifications, including voltage and current ratings, should be carefully considered when designing the circuit. The switch may also be available with various actuator styles and colors to suit different application requirements.

Note: Always refer to the manufacturer's datasheet for detailed specifications, including electrical characteristics, mechanical dimensions, and environmental ratings.
