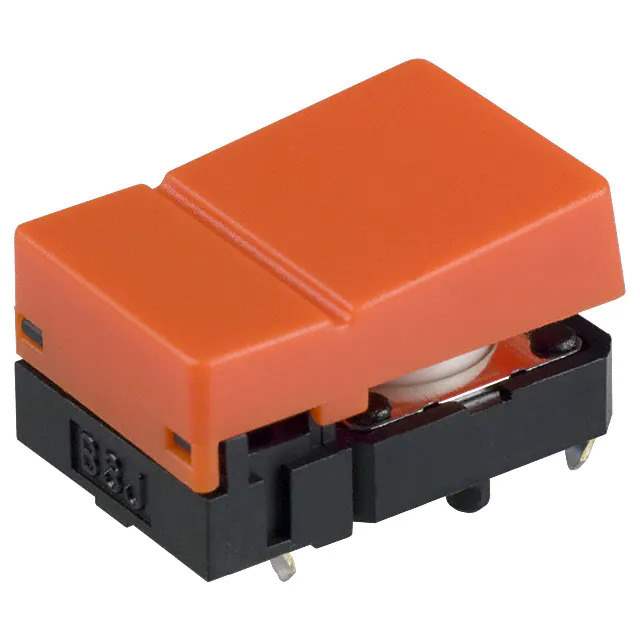

B3J-1200 Real Image
Same model may have multiple batches, images only for reference.

B3J-1200

Part No B3J-1200
Manufacturer Omron
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.05A 24V / Pushbutton Switch SPST-NO Keyswitch Through Hole
Datasheet
B3J-1200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Omron
Series B3J
Package Bulk
Product Status Active
Mounting Type Through Hole
Type Keyswitch
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 50mA (DC)
Voltage Rating - DC 24 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Orange
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 3,000,000 Cycles
Electrical Life 3,000,000 Cycles
Base Product Number B3J
Standard Package 300 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 568075-B3J-1200
Ultra Librarian 3D Model Ultra Librarian B3J-1200 CAD Model

Description

The B3J-1200 is a keyswitch pushbutton switch from Omron's B3J series.

  • Circuit Configuration: SPST-NO
  • Voltage Rating: 24VDC
  • Current Rating: 50mA
  • Actuator Type: Square, Button
  • Mechanical Life: 3,000,000 cycles
  • Mounting: Through-Hole
  • Operating Temperature: -25°C to 70°C
  • Status: Active
