STMicroelectronics ESDA14V2SC5 Transient Voltage Suppressor

The ESDA14V2SC5 is a high-performance transient voltage suppressor (TVS) designed by STMicroelectronics, a leader in semiconductor solutions. This component is specifically engineered to safeguard sensitive electronic circuits from electrostatic discharges (ESD), ensuring the reliability and longevity of consumer electronics, computer interfaces, and other applications vulnerable to electrical overstress.

Key Features

• ESD Protection: The ESDA14V2SC5 provides robust protection against electrostatic discharges, meeting IEC 61000-4-2 standards. It is capable of withstanding ESD strikes up to ±30 kV (air discharge) and ±30 kV (contact discharge), making it an ideal choice for safeguarding high-speed data lines and I/O ports.
• Low Clamping Voltage: This device features a low clamping voltage, which minimizes the stress on the protected component during an ESD event, thereby preventing damage to the sensitive circuitry.
• Low Leakage Current: The ESDA14V2SC5 boasts a low leakage current, ensuring minimal power consumption when the device is in standby mode, which is critical for battery-powered applications.

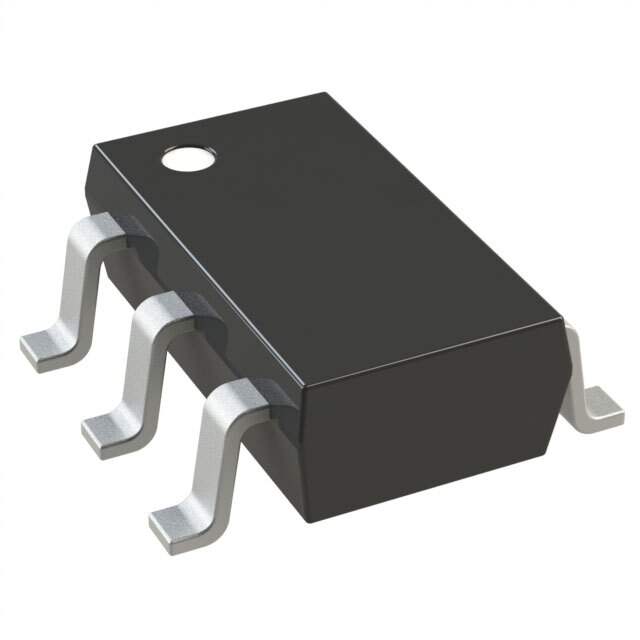

• Small Package: Housed in an SOT23-5L package, the ESDA14V2SC5 is compact and suitable for space-constrained designs. Its small footprint makes it a practical choice for modern portable electronics where board space is at a premium.

Applications

• Mobile phones and smartphones
• Portable multimedia devices
• USB interfaces and digital cameras
• Computer peripherals and laptops
• Networking and telecommunications systems

The ESDA14V2SC5 from STMicroelectronics is a versatile and reliable solution for protecting sensitive electronics from the potentially damaging effects of ESD. Its combination of high ESD immunity, low clamping voltage, and minimal leakage current, all packaged in a compact SOT23-5L, makes it a top choice for designers looking to enhance the durability and performance of their products.

Whether you are working on consumer electronics, communication devices, or any application that demands high-level ESD protection, the ESDA14V2SC5 offers the performance and reliability that you need to safeguard your designs against electrical transients.
