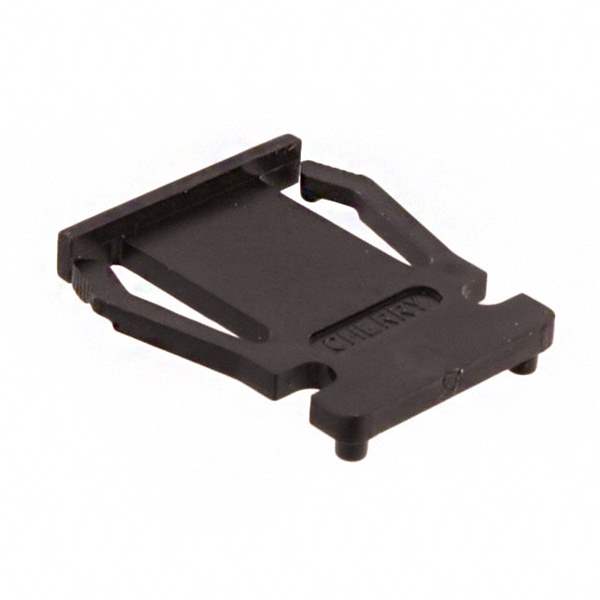

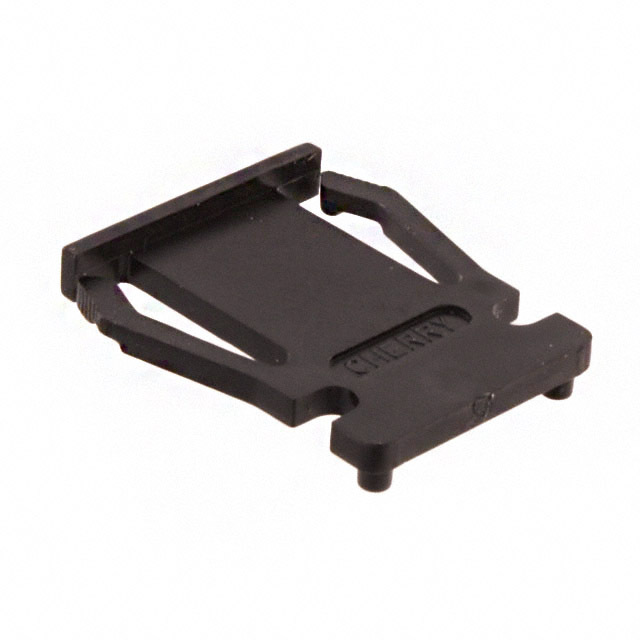

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Obsolete
Output Code Decimal
Read Out 0 ~ 9
Number of Sections 1
Actuator Type Thumbwheel
Contact Rating @ Voltage 0.1A @ 120VAC/28VDC
Contact Material Copper Alloy
Mounting Type Panel Mount, Screw
Termination Style Card Edge/Solder Pad with Component Mounting
End Caps Sold Separately
Section Width 0.350" (8.89mm)
Temperature Range - Operating -40°C ~ 65°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1564005-301119100
Ultra Librarian 3D Model Ultra Librarian 301119100 CAD Model
