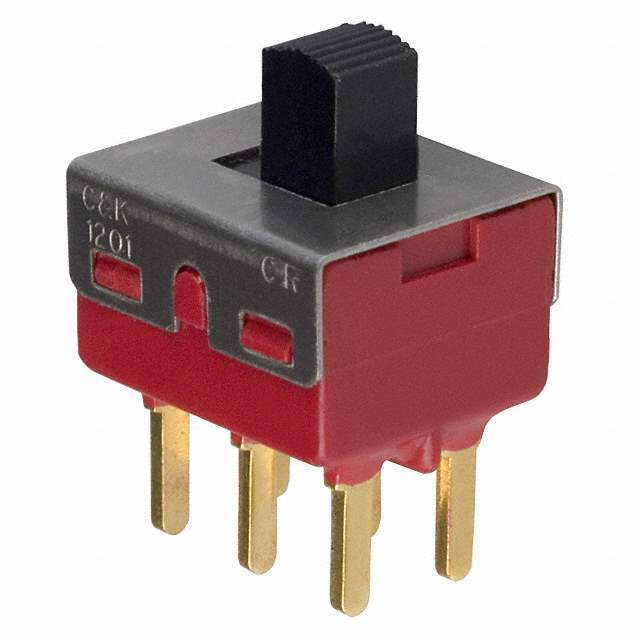

1201M2S3CBE2 C&K
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1310274-1201M2S3CBE2
Manufacturer C&K
Category Switches > Slide Switches
Packaging Bulk
Part Status Active
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Actuator Type Standard
Actuator Length 5.08mm
Contact Material Copper
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian 1201M2S3CBE2 CAD Model

Description

The 1000 series miniature slide switches are typically found in applications in the test & measurement equipment, telecommunications, and computers & peripherals industries. The 1000 series come in a variety of actuators and terminations, are epoxy terminal-seal compatible with bottom wash cleaning, and come with optional panel mount tabs.
