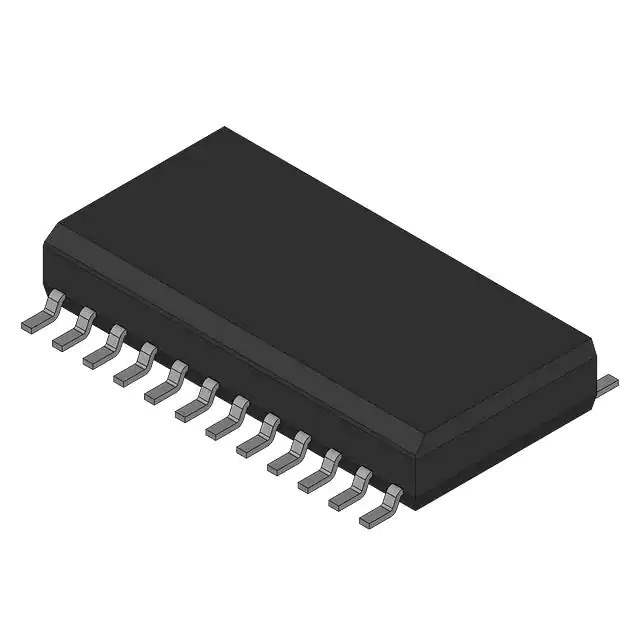

DAC7802KUG4 Real Image
Same model may have multiple batches, images only for reference.

DAC7802KUG4

Part No DAC7802KUG4
Manufacturer Burr-Brown (TI)
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 12BIT A-OUT 24SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters (DAC)
Mfr Burr-Brown (TI)
Package Bulk
Product Status Active
Programmable Not Verified
Number of Bits 12
Number of D/A Converters 2
Settling Time 800ns
Output Type Current - Unbuffered
Differential Output No
Data Interface Parallel
Reference Type External
Voltage - Supply, Analog 5V
Voltage - Supply, Digital 5V
INL/DNL (LSB) ±1 (Max), ±1 (Max)
Architecture Multiplying DAC
Temperature Range - Operating -40°C ~ 85°C
Package / Case 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package 24-SOIC
Mounting Type Surface Mount
Base Product Number DAC7802
Standard Package 15 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 583919-DAC7802KUG4
Ultra Librarian 3D Model Ultra Librarian DAC7802KUG4 CAD Model

Description

The 583919-DAC7802KUG4 is a digital-to-analog converter (DAC) integrated circuit (IC) in the Data Acquisition category.

  • Resolution: 12-bit
  • Data Interface: Parallel
  • Reference Voltage: 5V (analog and digital)
  • Settling Time: 800ns
  • D/A Converters: Two
  • Architecture: Multiplying DAC
  • Output Type: Unbuffered current output
  • Mounting: Surface mountable
  • Package: 24-SOIC
  • Product Status: Active
  • Applications: Data acquisition requiring high precision and fast conversion speeds.
