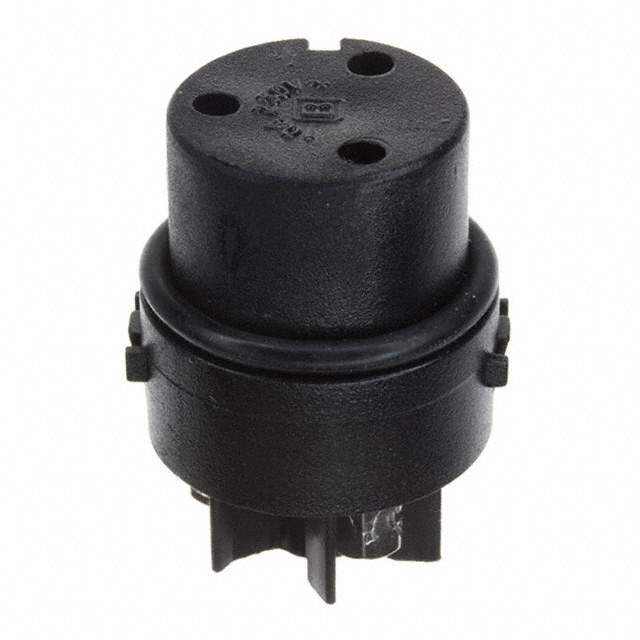

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Bulgin
Series Buccaneer®, Mini
Package Bulk
Connector Type Insert, Female Sockets
Number of Positions 3 (2 Power + PE)
Termination Screw
Orientation Keyed
Contact Finish - Mating Nickel
Material Flammability Rating UL94 V-0
Features Insert Only, Requires Shell
Shielding Unshielded
Current Rating (Amps) 10A
Voltage Rating 250VAC
Temperature Range - Operating -20°C ~ 70°C
Contact Material Brass
Insert Material Polyamide (PA), Nylon
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Names 708-1244,2266-SA3229
Standard Package 150
Win Source Part Number 1223952-SA3229
Ultra Librarian 3D Model Ultra Librarian SA3229 CAD Model

Description

The Bulgin Buccaneer Mini connector is an insert-only, female socket connector with screw termination from Bulgin.

  • Positions: 3 positions, including 2 power and PE
  • Insert Material: Polyamide (PA) nylon
  • Contact Material: Brass
  • Voltage Rating: 250VAC
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -20°C to 70°C
  • Shielding: Unshielded
  • Contact Finish-Mating: Nickel
  • Shell Size: Not specified
  • Mounting Type: Not specified
  • Package: Bulk
  • Standard Pieces Per Package: 150
