Same model may have multiple batches, images only for reference.

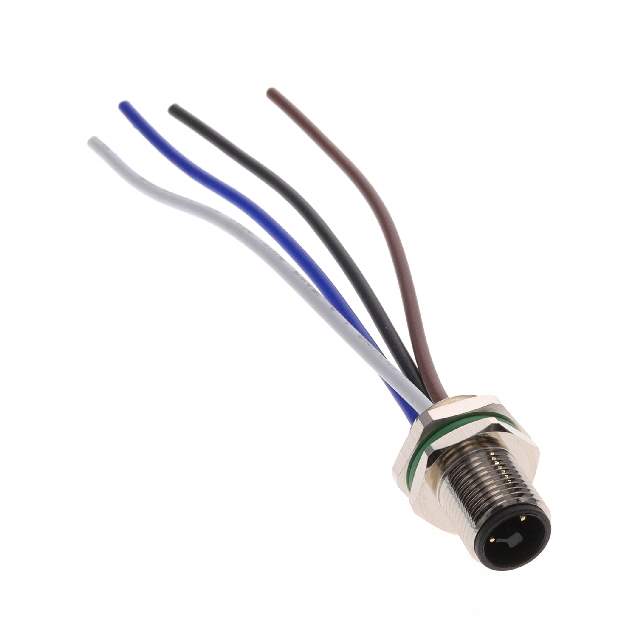

PXMBNI12RPM04TFLM16001 Real Image
Same model may have multiple batches, images only for reference.

PXMBNI12RPM04TFLM16001

Part No PXMBNI12RPM04TFLM16001
Manufacturer Bulgin
Catalog Circular Connectors
Description CONN RCPT MALE 4P GOLD WIR LEADS / 4 Position Circular Connector Receptacle, Male Pins Wire Leads
Datasheet
PXMBNI12RPM04TFLM16001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Bulgin
Series Buccaneer® M12
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 4
Shell Size - Insert M12-4
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Wire Leads
Fastening Type Threaded
Orientation T
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Current Rating (Amps) 4A
Voltage Rating 250V
Temperature Range - Operating -25°C ~ 80°C
Contact Material Brass
Applications Industrial
Base Product Number PXMBNI
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Other Names 708-PXMBNI12RPM04TFLM16001
Standard Package 25
Win Source Part Number 1107918-PXMBNI12RPM04TFLM16001
Ultra Librarian 3D Model Ultra Librarian PXMBNI12RPM04TFLM16001 CAD Model

Description

The Bulgin PXMBNI12RPM04TFLM16001 is a circular connector type receptacle with male pins. Bold the product name (e.g., BAV99S,135 → BAV99S,135) and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Connector Type: Receptacle, Male Pins
  • Positions: 4
  • Current Rating: 4A
  • Voltage Rating: 250V
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Packaging: Bulk
  • Standard Package: 25
  • Temperature Range: -25°C to 80°C
  • Mounting Feature: Bulkhead - Rear Side Nut
