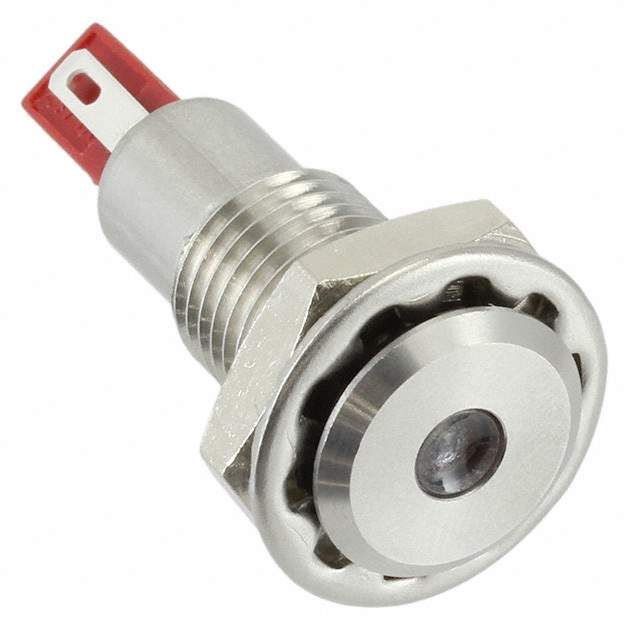

DX0505/RD/24 Real Image
Same model may have multiple batches, images only for reference.

DX0505/RD/24

Part No DX0505/RD/24
Manufacturer Bulgin
Catalog Optics - LEDs - Light Pipes
Description LED PANEL INDICATOR RED 24V  /  LED Panel Indicator Red 24V 30mA Solder Lug
Datasheet
DX0505/RD/24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Bulgin
Series DX0505
Package Bulk
Type LED
Lamp Color Red
Ratings DC
Voltage 24V
Current 30mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.48" (12.10mm)
Lens Style Round with Flat Top
Millicandela Rating 2000mcd
Termination Style Solder Lug
Ingress Protection IP67
Base Product Number DX0505
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 2266-DX0505/RD/24,708-1883,DX0505/RD/24-ND
Standard Package 50
Win Source Part Number 1125208-DX0505/RD/24
Ultra Librarian 3D Model Ultra Librarian DX0505/RD/24 CAD Model

Description

The 1125208-DX0505/RD/24 is a panel indicator from the DX0505 series by Bulgin.

  • Type: LED
  • Termination Style: solder lug
  • Voltage: 24V
  • Standard Package: 50
  • Rated for: DC
  • Panel Cutout Dimensions: 0.48" (12.10mm)
  • Millicandela Rating: 2000mcd
  • Lamp Color: red
  • Current: 30mA
  • Panel Cutout Shape: round
  • Lens Style: round with a flat top
  • Alternative Parts: DX0505-RD-24, DX0505/RD/24., and DX0505RD24.
  • MSL Level: 1 (unlimited)
  • REACH Status: unaffected
  • HTSUS: 8541.41.0000
