Same model may have multiple batches, images only for reference.

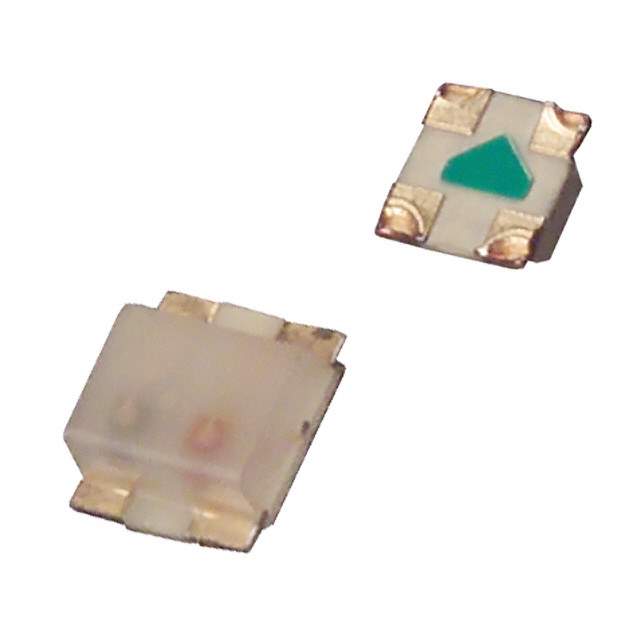

SML-522MY8WT86 Real Image
Same model may have multiple batches, images only for reference.

SML-522MY8WT86

Part No SML-522MY8WT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GRN/YELLOW DIFFUSED 1315 SMD  /  Green, Yellow 572nm Green, 590nm Yellow LED Indication - Discrete 2.2V Green, 2.2V Yellow 0605 (1513 Metric)
Datasheet
SML-522MY8WT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series SML-52
Package Tape & Reel
Color Green, Yellow
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 40mcd Green, 63mcd Yellow
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.10mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2.2V Yellow
Current - Test 20mA Green, 20mA Yellow
Mounting SMD (SMT)
Wavelength - Dominant 572nm Green, 590nm Yellow
Package / Case 0605 (1513 Metric)
Supplier Device Package 1315 (0605)
Dimension 1.50mm L x 1.30mm W
Height (Max) 0.70mm
Base Product Number SML-522
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 846-1110-1,846-1110-2,SML-522MY8WT86NS,846-1110-6,SML-522MY8WT86NQ,SML-522MY8WT86PS,SML-522MY8WT86NR,SML-522MY8WT86PQ,SML-522MY8WT86QR,SML-522MY8WT86PR,SML-522MY8WT86QS,SML-522MY8WT86QQ,SML522MY8WT86
Standard Package 4,000
Win Source Part Number 1094464-SML-522MY8WT86
Ultra Librarian 3D Model Ultra Librarian SML-522MY8WT86 CAD Model

Description

The Rohm Semiconductor 1094464-SML-522MY8WT86 is a green and yellow LED indication discrete product with a millicandela rating of 40mcd for green and 63mcd for yellow.

  • Millicandela Rating (Green): 40mcd
  • Millicandela Rating (Yellow): 63mcd
  • Voltage-Forward (Vf) (Typ): 2.2V (Green and Yellow)
  • Current Test: 20mA
  • Wavelength-Dominant (Green): 572nm
  • Wavelength-Dominant (Yellow): 590nm
  • Package: 0605 (1513 Metric)
  • Standard Package: 4,000
  • Lens Style: Rectangle with a Flat Top
  • Lens Size: 1.30mm x 1.10mm
  • REACH: Unaffected
  • MSL Level: 4 (72 hours)
  • ECCN: EAR99
